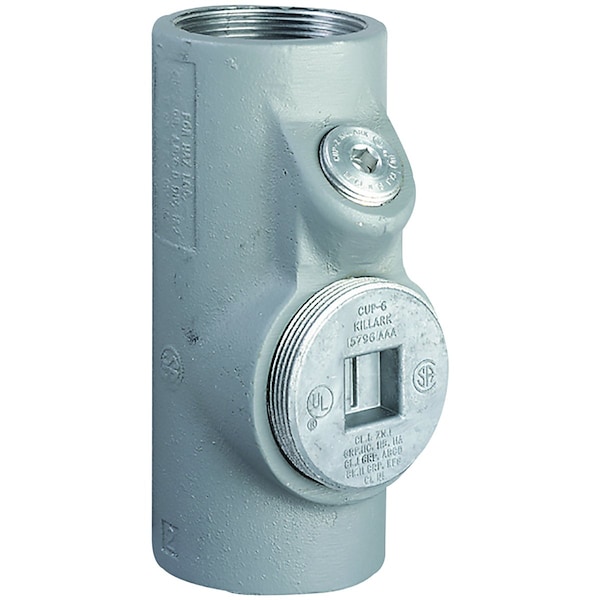

Sealing Fittings, Seal Accessory, Aluminum
| Item | Sealing Fittings |
|---|---|
| Material | Aluminum |
| Conduit Size (In.) | 2 |
| Color | Gray |
| Width | 7.63 in |
| Length | 15.88 in |
| Application | Class I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to |
| Finish | Powder Epoxy Paint |
| Height | 5-1/2 in |
| Carton Quantity | 5 |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Special Features | Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating. |
| UL File Number | E10514 |
| CSA File Number | LR11716 |
| Package Net Weight | 1.49 |
| Package Quantity | 1 |
