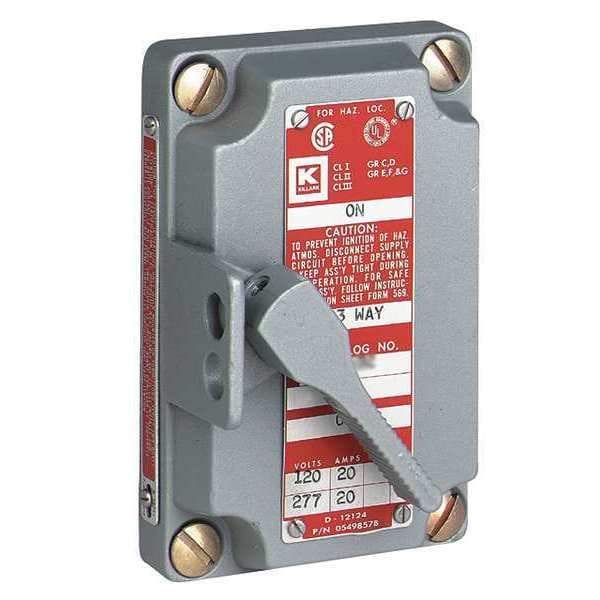

Cubierta frontal del ensamblaje de interruptor, Serie XS, 1 @ 120V, 2 @ 240V, 1 Polo.
| HP | 1 @ 120V, 2 @ 240V |
|---|---|
| Amps | 20 A |
| Type of Operator | Tumbler Switch |
| Material | Cast Aluminum |
| Number of Gangs | 1 |
| Voltage | 120/277V AC |
| Safety Rating | Class I, Divison 1 & 2, Groups C, D; Class I, Zones 1 & 2, Groups IIB, IIA; Class II, Division 1 & 2, Groups E, F, G; Class III |
| For Use With | EDS Series Tumbler Switches |
| Item | Switch Cover |
| Switch Type | 1-Pole |
| Depth | 38078 |
| Includes | 1-Pole, 20A Switch |
| Width | 7-7/8 in |
| Height | 3-1/4 in |
| Legend | On/Off |
| Special Features | Killark XCS SERIES TUMBLER SWITCH Control Stations provide control means in hazardous location areas turning ON and OFF Motors, Fans, Lights etc. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified. |
| Series | XS |
| Color | Gray |
| Compatible Product Type | Tumbler Switches |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Compatible with Series | XS |
| Product Type | Front Cover with Switch |
| Type | Aluminum Tumbler Switch Cover |
| Frequency Rating | 50/60 Hz |
| Application | Used where making, breaking, or changing connections in an electric circuit is required. |
| Length | 3-1/2 in |
| UL File Number | E53360 |
| Number Of Poles | 1, 1 |
| Dimensions | 3-1/2 in x 7-7/8 in x 3-1/4 in |
| Amperage Rating | 20 A |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Back Box Type | SWB |
| Actuator | Lever |
| CSA File Number | LR11712 |
| Action | SPST |
| Package Quantity | 1 |
