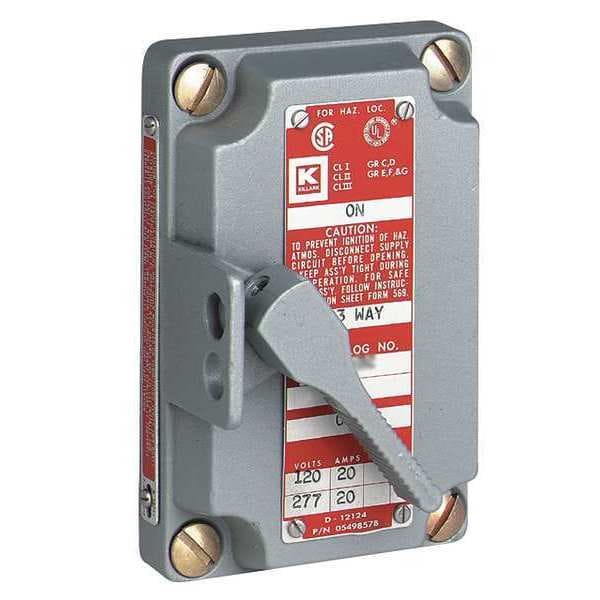

Cubierta frontal del ensamble de interruptor, serie XS, 3 @ 240V, 5 @ 480V, 3 polos
| HP | 3 @ 240V, 5 @ 480V |
|---|---|
| Amps | 15 A |
| Material | Cast Aluminum |
| Voltage | 240/480V AC |
| Type of Operator | Tumbler Switch |
| Number of Gangs | 1 |
| For Use With | EDS Series Tumbler Switches |
| Safety Rating | Class I, Divison 1 & 2, Groups C, D; Class I, Zones 1 & 2, Groups IIB, IIA; Class II, Division 1 & 2, Groups E, F, G; Class III |
| Item | Switch Assembly Front Cover |
| Switch Type | 3-Pole |
| Includes | 3-Pole, 15A Switch |
| Special Features | Killark XCS SERIES TUMBLER SWITCH Control Stations provide control means in hazardous location areas turning ON and OFF Motors, Fans, Lights etc. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified. |
| Depth | 38078 |
| Height | 4-7/8 in |
| Legend | On/Off |
| Width | 6 in |
| Series | XS |
| Color | Gray |
| Product Type | Front Cover with Switch |
| Compatible with Series | XS |
| Compatible Product Type | Tumbler Switches |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2 |
| Horsepower - Maximum | 5 |
| Type | Aluminum Tumbler Switch Cover |
| Frequency Rating | 50/60 Hz |
| Dimensions | 6-1/4 in x 6 in x 4-7/8 in |
| Number Of Poles | 3, 3 |
| Back Box Type | SWB |
| Application | Used where making, breaking, or changing connections in an electric circuit is required. |
| Amperage Rating | 15 A |
| UL File Number | E53360 |
| Length | 6-1/4 in |
| CSA File Number | LR11712 |
| Action | 3P |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Actuator | Lever |
| Package Quantity | 1 |
