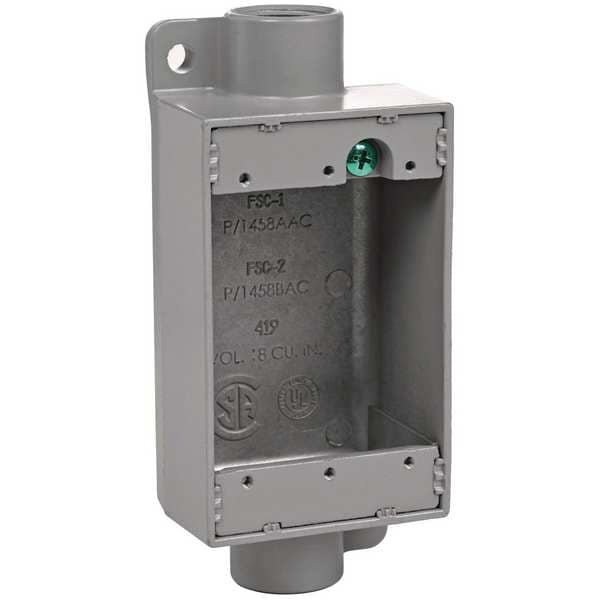

Weatherproof Electrical Box, 18 cu in, FSC Box Type, 1 Gang, Aluminum
| Item | Weatherproof Electrical Box |
|---|---|
| Capacity | 18 cu in |
| Box Type | FSC |
| Number of Gangs | 1 Gang |
| Material | Aluminum |
| Length | 6.38 in |
| Width | 2.88 in |
| Depth | 2 in |
| Number of Inlets | 2 |
| Color | Metallic |
| Standards | CSA, UL Listed |
| Hub Size | 1/2 in |
| Length (Straight Wireway) | 6.38 in |
| Height | 2 in |
| Number of Hubs | 2 |
| Hub Location | 1 Each on Opposing Sides |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42). |
| UL File Number | E3397 |
| Hub Pattern | Feed-Thru |
| CSA File Number | LR11852 |
| Overall Depth | 2 in |
| Box Height | 2-7/8 in |
| Overall Height | 2-7/8 in |
| Box Width | 4-5/8 in |
| Hub Type | Feed Through |
| Box Shape | Rectangular |
| Box Diameter | Not Applicable |
| Overall Width | 6-3/8 in |
| Box Depth | 2 in |
| Package Quantity | 1 |
