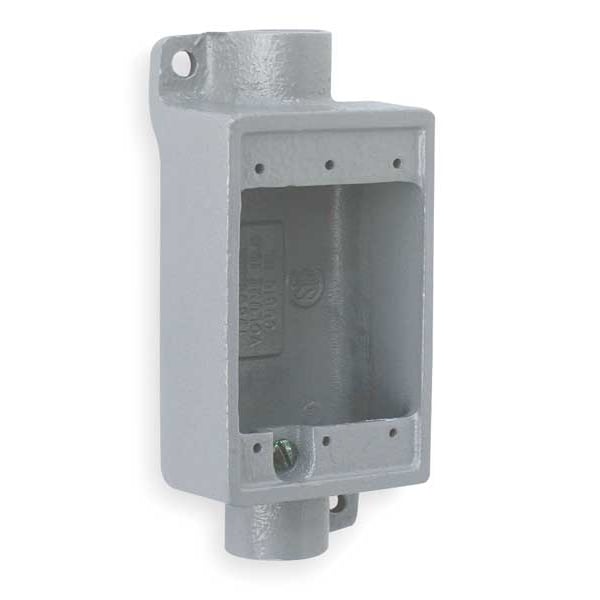

Weatherproof Electrical Box, 18 cu in, FSC Box Type, 1 Gang, Malleable Iron, Rectangular Shape
| CAD Available | Yes |
|---|---|
| Item | Weatherproof Electrical Box |
| Capacity | 18 cu in |
| Box Type | FSC |
| Number of Gangs | 1 Gang |
| Material | Malleable Iron |
| Length | 6.38 in |
| Width | 2.88 in |
| Depth | 2 in |
| Opening Shape | Rectangular |
| Number of Inlets | 2 |
| Conduit Size | 3/4 in |
| Color | Silver |
| Standards | CSA, UL Listed |
| Mounting Holes O.C. (In.) | 2.12 |
| Bracket Type | Lugs |
| Hub Size | 3/4 in |
| Height | 3-1/2 in |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style cove |
| CSA File Number | LR11852 |
| UL File Number | E3397 |
| Hub Pattern | Feed-Thru |
| Box Diameter | Not Applicable |
| Box Width | 4-5/8 in |
| Box Shape | Rectangular |
| Overall Width | 6-3/8 in |
| Hub Type | Feed Through |
| Overall Height | 2-7/8 in |
| Box Height | 2-7/8 in |
| Box Depth | 2 in |
| Overall Depth | 2 in |
| Package Quantity | 1 |
