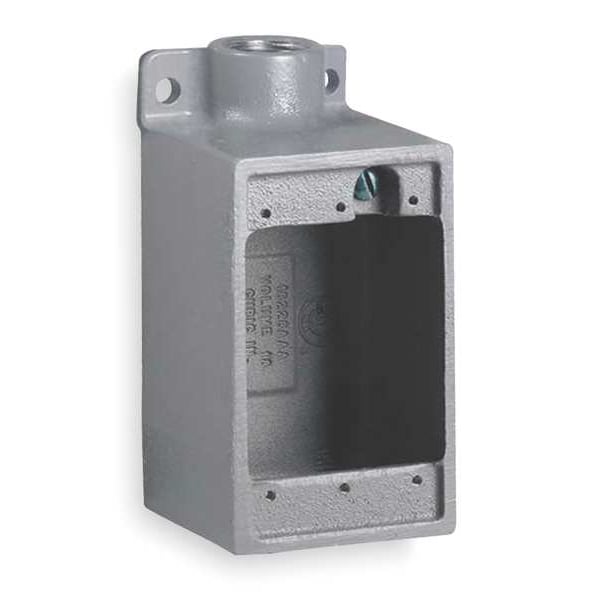

Weatherproof Electrical Box, 28 cu in, FD Box Type, 1 Gang, Malleable Iron, Rectangular Shape
| CAD Available | Yes |
|---|---|
| Item | Weatherproof Electrical Box |
| Capacity | 28 cu in |
| Box Type | FD |
| Number of Gangs | 1 Gang |
| Material | Malleable Iron |
| Length | 5-1/2 in |
| Width | 2.88 in |
| Depth | 2.88 in |
| Opening Shape | Rectangular |
| Number of Inlets | 1 |
| Conduit Size | 1/2 in |
| Color | Silver |
| Hub Size | 1/2 in |
| Bracket Type | Lugs |
| Mounting Holes O.C. (In.) | 2.12 |
| Standards | CSA, UL Listed |
| Height | 3-1/2 in |
| Finish | Powder Epoxy Paint |
| CSA File Number | LR11852 |
| Hub Pattern | Dead-End |
| UL File Number | E3397 |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style cove |
| Box Width | 4-5/8 in |
| Box Diameter | Not Applicable |
| Hub Type | Dead End |
| Box Depth | 2-7/8 in |
| Overall Width | 5-1/2 in |
| Box Shape | Rectangular |
| Box Height | 2-7/8 in |
| Overall Depth | 2-7/8 in |
| Overall Height | 2-7/8 in |
| Package Quantity | 1 |
