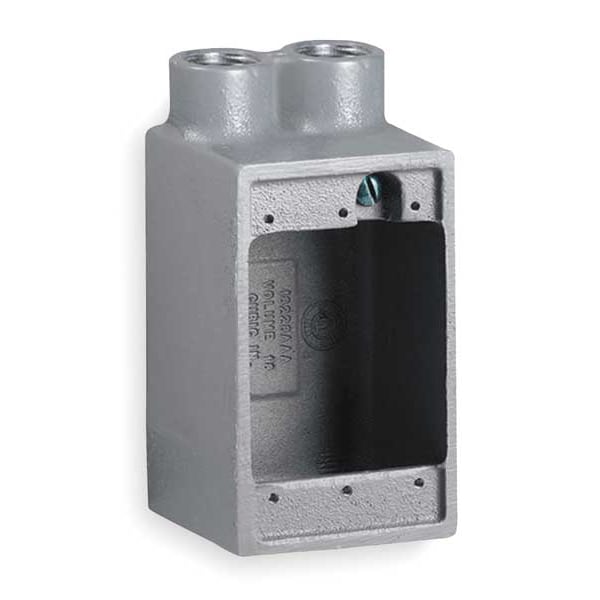

Weatherproof Electrical Box, 28 cu in, FDS Box Type, 1 Gang, Malleable Iron
| Item | Weatherproof Electrical Box |
|---|---|
| Capacity | 28 cu in |
| Box Type | FDS |
| Number of Gangs | 1 Gang |
| Material | Malleable Iron |
| Length | 5-1/2 in |
| Width | 2.88 in |
| Depth | 2.69 in |
| Number of Inlets | 2 |
| Color | Silver |
| Bracket Type | Lugs |
| Hub Size | 3/4 in |
| Standards | CSA, UL Listed |
| Length (Straight Wireway) | 5-1/2 in |
| Height | 3-1/2 in |
| Finish | Powder Epoxy Paint |
| Hub Pattern | Dead-End |
| CSA File Number | LR11852 |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style covers (see pages F40-F42). Volume is |
| UL File Number | E3397 |
| Hub Type | Dead End |
| Overall Height | 2-7/8 in |
| Box Width | 4-5/8 in |
| Box Diameter | Not Applicable |
| Box Depth | 2-7/8 in |
| Overall Depth | 2-7/8 in |
| Overall Width | 6-3/8 in |
| Box Shape | Rectangular |
| Box Height | 2-7/8 in |
| Package Quantity | 1 |
