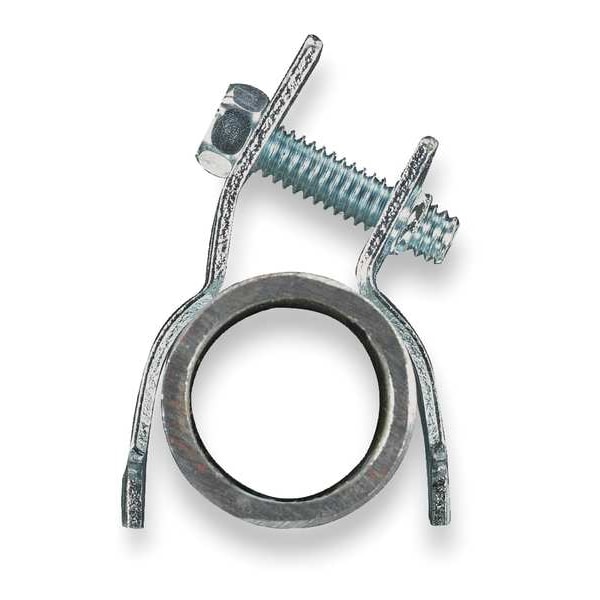

Clamp, EMT; Pipe; Strut Use, 1-1/4 in, Steel, Electro Galvanized
| Item | Clamp |
|---|---|
| Nominal/Conduit Pipe | 1-1/4 in |
| Material | Steel |
| Finish | Electro Galvanized |
| For Use With | EMT; Pipe; Strut |
| Sub-Category | Clamps |
| Conduit Type | EMT |
| Width | 1-1/4 in |
| Color | Silver |
| Thickness | 14 ga |
| Conduit Size | 1-1/4 in |
| Length | 2-3/4 in |
| Standards | UL, SA |
| Type | Conduit, Cable & Pipe Supports |
| Number of Pieces | 100 |
| Overall Length | 2-3/4 in |
| Gauge | 14 ga |
| Load Capacity | 500 lb |
| Overall Width | 1-1/4 in |
| Nominal Strut Size | 1-1/4 in |
| Strut Trade Size | 1-1/4 in |
| Material Thickness (ga.) | 14 ga. |
| Design Load (lbs) | 500 |
| Install Torque (in. lbs.) | 40 |
| Number Of Holes | 0 |
| Features | Superior Load Performance-The highest load ratings of any break-apart strap in the industry. Integrated, rolled threading provides the load performance of a hex nut without the extra hardware.; Easy Bolt Access-Angler makes it simple to reach bolts with a screwdriver or power tool, even when clamps are installed side by side.; One-Piece Design-No disassembly, no spare parts to lose or drop, easy to carry and store. |
| Special Features | ElectroGalv silver finish matches other pre-galvanized or green painted strut systems |
| Package Quantity | 10 |
