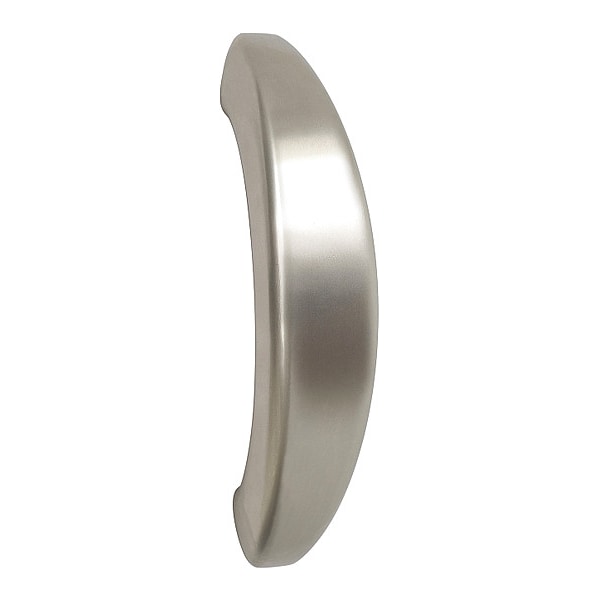

Pull Handle, Silver, Aluminum, 3 1/4 in L
| Material | Aluminum |
|---|---|
| Finish | Satin Nickel |
| Projection | 1-1/8 in |
| Grip Thickness | 3/8 in |
| Cutout Width | Not Applicable |
| Mounting Hole Center to Center | 4 in |
| Vert. Mounting Hole Ctr. to Ctr. | 4-1/4 in |
| Degree Offset | Not Applicable |
| Screw Size | M8 |
| Hardware | Machine Screws |
| Item | Pull Handle |
| Grip Dia. | 1-37/64 in |
| Overall Width | 1-5/8 in |
| Grip Height | 5/8 in |
| Operating Temp. | 0 to 100 deg F |
| Handle Stop | 180 deg |
| Load Capacity | 200 lb |
| Outer Mounting Hole Ctr. to Ctr. | 2 in |
| Load Rated (Y/N) | N |
| Overall Length | 5-7/8 in |
| Grip Length | 3-1/4 in |
| Thread Depth | 1/2 in |
| Color | Silver |
| Product Type | Pull Handle |
| Grip Diameter | Not Applicable |
| Load Rating | Load Rated |
| Includes Hardware | Hardware Included |
| Operating Temperature - Maximum | 100 deg F |
| Grip Offset | 1 in |
| Cutout Length | Not Applicable |
| Mounting Hole Center to Center - Vertical | 4 in |
| Ligature Resistance | Ligature Resistant |
| Load Capacity - Perpendicular | 200 lbf |
| Number of Mounting Holes | 2 |
| Cutout Depth | Not Applicable |
| ANSI/BHMA Finish | Satin Nickel-Plated |
| Projection Type | Non-Recessed |
| Projection - Folded | Not Applicable |
| Grip Shape | Flat |
| Handle Shape | Arch |
| Grip Width | 5/8 in |
| Load Capacity - Parallel | 200 lbf |
| Folding Type | Fixed |
| Operating Temperature - Minimum | 0 deg F |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
