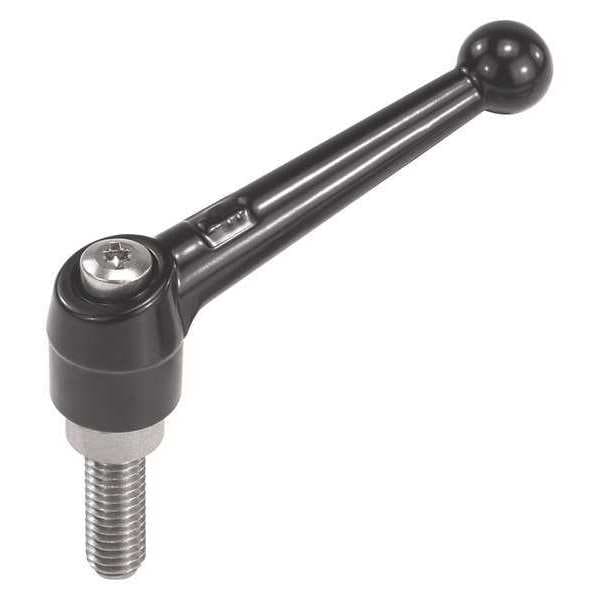

Adjustable Handle, Size: 1 10-24X15 Zinc, Black Satin, Comp: Stainless Steel
| Base Dia. (In.) | 0.39 |
|---|---|
| Color | Black |
| Diameter | 13 mm |
| Finish | Uncoated (Parts), Powder Coated, Satin |
| Height | 0.97 in |
| Knob Type | Ball Knob |
| Length | 39 mm |
| Material | Diecast Zinc, Steel |
| Screw Length | 15 mm |
| Style | Classic Ball |
| Thread Size | #10-24 |
| Overall Length | 46 mm |
| Overall Height | 50.5 mm |
| Width | 0.51 in |
| Components | Stainless Steel |
| Type | External Thread |
| Item | Adjustable Handle |
| Height (In.) | 0.97 |
| Standards | DIN EN 12844, DIN EN ISO 4753, RoHS |
| Thread Type | External |
| Handle Type | Ball Knob |
| Thread Standard | UNC |
| Handle Material | Zinc |
| Finish - Machining | Powder Coated |
| Components Material | Stainless Steel |
| Measurement System | Inch |
| Handle Length | 39 mm |
| Handle Height - Minimum | 32.5 mm |
| Thread Length | 15 mm |
| Hub Height | 24.5 mm |
| Handle Angle | 20 Degrees |
| Handle Height - Maximum | 35.5 mm |
| Thread Material | Stainless Steel |
| Package Quantity | 1 |
