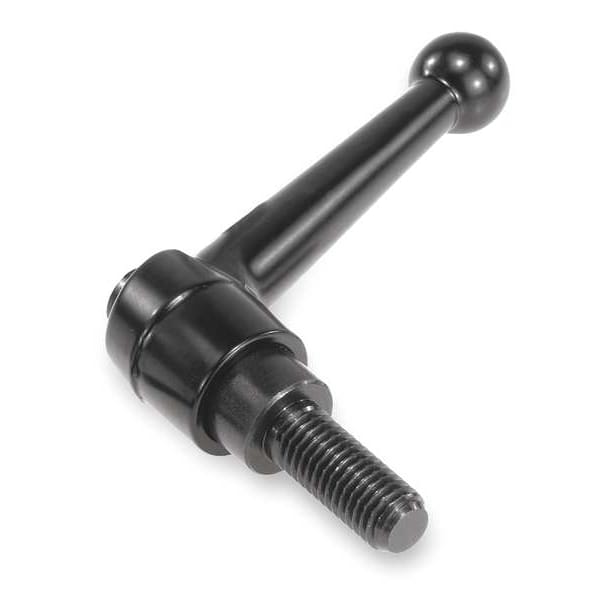

Adjustable Handle, Size: 2 M10X40 Zinc, Black Satin, Comp: Stainless Steel
| Style | Classic Ball |
|---|---|
| Screw Length | 40 mm |
| Thread Size | M10 |
| Material | Zinc |
| Color | Black |
| Height | 3.37 in |
| Type | External Thread, Stainless Steel Components |
| Height (In.) | 3.37 |
| Item | Adjustable Handle |
| Finish | Uncoated, Powder Coated, Satin |
| Standards | RoHS, DIN EN ISO 4753, DIN EN 12844 |
| Knob Type | Adjustable Handle |
| Overall Length | 73 mm |
| Thread Type | External |
| Overall Height | 89.5 mm |
| Components Material | Stainless Steel |
| Handle Material | Zinc |
| Handle Type | Ball Knob |
| Handle Length | 64 mm |
| Thread Length | 40 mm |
| Measurement System | Metric |
| Thread Standard | Metric |
| Hub Height | 28.5 mm |
| Handle Height - Minimum | 45.5 mm |
| Handle Height - Maximum | 49.5 mm |
| Handle Angle | 20 deg |
| Thread Material | Stainless Steel |
| Package Quantity | 1 |
