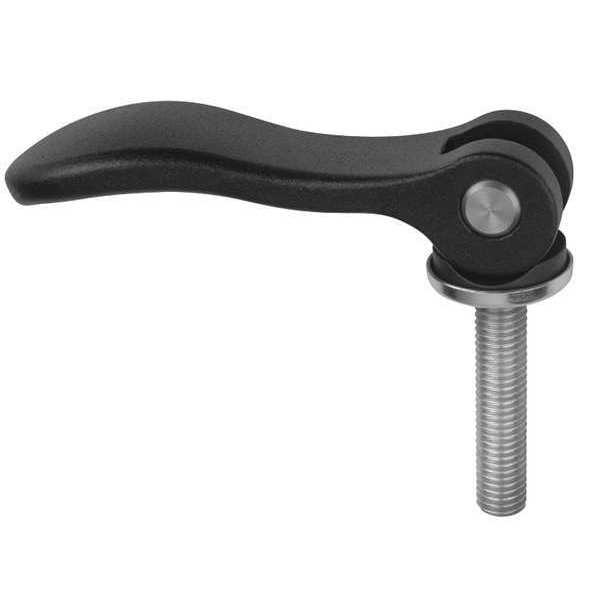

Cam Lever Adj. S1 1/4-20X30, A=70, 4, B=21, 5, Aluminum Black Powder-Coated, Comp: Stainless Steel
| Item | Cam Handle |
|---|---|
| Handle Type | Adjustable Cam Lever |
| Overall Width | 21.5 mm |
| Thread Type | External |
| Overall Length | 79.2 mm |
| Style | Adjustable |
| Width | 0.83 |
| Color | Black |
| Type | Adjustable |
| Components | Stainless Steel |
| Thread Size | 1/4"-20 |
| Screw Length | 30 mm |
| Material | Cast aluminum |
| Finish | Uncoated, Powder Coated |
| Standards | RoHS |
| Components Material | Stainless Steel |
| Handle Material | Aluminum |
| Features | Screwdriver Slot at Stud's Top End Allows for Fine Adjustment when Clamping Space is limited, Stainless Steel Hinge Pin |
| Finish - Machining | Bright |
| Thread Standard | UNC |
| Thread Material | Stainless Steel |
| Hardware Material | Stainless Steel, Plastic, Steel |
| Handle Width | 15 mm |
| Thread Length | 30 mm |
| Measurement System | Inch |
| Clamping Distance | 1.2 mm |
| Center Height - Maximum | 14.5 mm |
| Clamped Height | 22 mm |
| Handle Length | 70.4 mm |
| Clamping Force - Maximum | 4 kN |
| Package Quantity | 1 |
