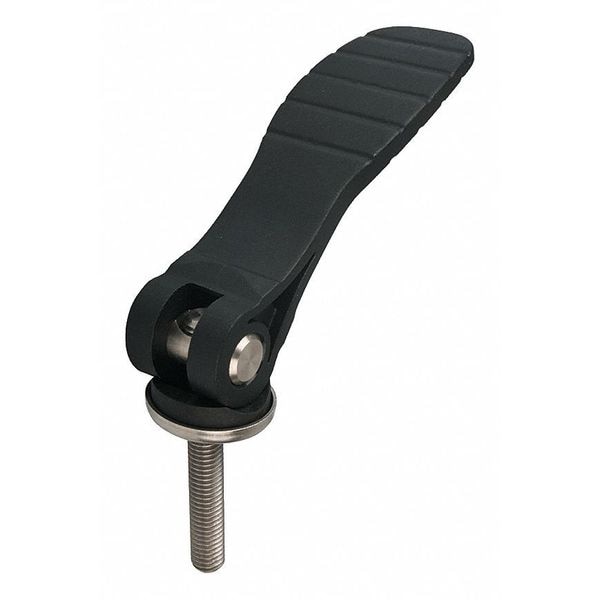

Cam Lever Adjustable, Black Plastic, Stainless Steel Components, Size: 1 1/4-20X40, A=71, 5, B=22
| Item | Cam Handle |
|---|---|
| Handle Type | Adjustable Cam Lever |
| Overall Width | 22 mm |
| Thread Type | External |
| Overall Length | 79.6 mm |
| Thread Size | 1/4"-20 |
| Material | Stainless Steel/Plastic |
| Type | External Thread |
| Finish | Uncoated |
| Width | 22 mm |
| Screw Length | 40 mm |
| Standards | RoHS |
| Handle Material | Plastic |
| Features | Fiberglass Reinforced Plastic Handle and Thrust Washer, Screwdriver Slot at Stud's Top End Allows for Fine Adjustment when Clamping Space is limited |
| Components Material | Stainless Steel |
| Color | Black |
| Thread Standard | UNC |
| Center Height - Maximum | 14 mm |
| Thread Length | 40 mm |
| Thread Material | Stainless Steel |
| Handle Length | 71.5 mm |
| Hardware Material | Stainless Steel, Stainless Steel |
| Handle Width | 16 mm |
| Measurement System | Inch |
| Clamping Force - Maximum | 2.5 kN |
| Clamped Height | 23.4 mm |
| Clamping Distance | 1.15 mm |
| Package Quantity | 1 |
