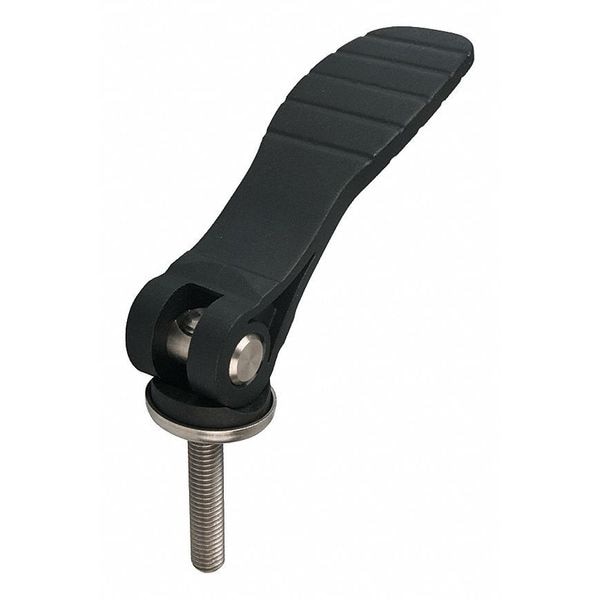

Cam Lever Adjustable, Black Plastic, Stainless Steel Components, Size: 2 M08X40, A=100, B=33
| Item | Cam Handle |
|---|---|
| Handle Type | Adjustable Cam Lever |
| Overall Width | 33 mm |
| Thread Type | External |
| Overall Length | 110 mm |
| Thread Size | M8 |
| Material | Stainless Steel/Plastic |
| Width | 33 mm |
| Type | External Thread |
| Finish | Uncoated |
| Screw Length | 40 mm |
| Standards | RoHS |
| Color | Black |
| Handle Material | Plastic |
| Components Material | Stainless Steel |
| Features | Fiberglass Reinforced Plastic Handle and Thrust Washer, Screwdriver Slot at Stud's Top End Allows for Fine Adjustment when Clamping Space is limited |
| Hardware Material | Stainless Steel, Stainless Steel |
| Handle Width | 24 mm |
| Clamped Height | 27.7 mm |
| Center Height - Maximum | 16.2 mm |
| Clamping Force - Maximum | 5 kN |
| Measurement System | Metric |
| Clamping Distance | 1.5 mm |
| Handle Length | 100 mm |
| Thread Material | Stainless Steel |
| Thread Length | 40 mm |
| Package Quantity | 1 |
