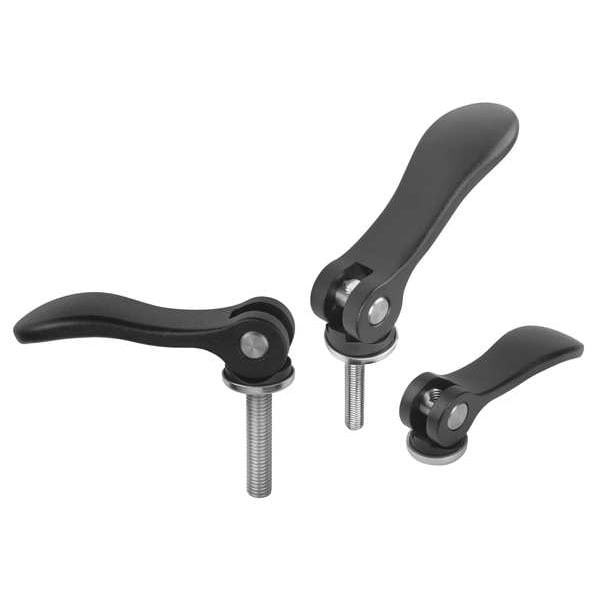

Cam Lever Adjustable Size: 2 5/16-18X30, A=96, B=33, 3, Aluminum Black Powder-Coated, Comp: Steel
| Item | Cam Handle |
|---|---|
| Handle Type | Adjustable Cam Lever |
| Overall Width | 33.3 mm |
| Thread Type | External |
| Overall Length | 108 mm |
| Finish | Uncoated, Powder Coated |
| Screw Length | 30 mm |
| Width | 1.30 |
| Type | Adjustable |
| Thread Size | 5/16"-18 |
| Material | Cast aluminum |
| Components | Steel |
| Style | Adjustable |
| Color | Black |
| Standards | RoHS |
| Features | Screwdriver Slot at Stud's Top End Allows for Fine Adjustment when Clamping Space is limited |
| Finish - Machining | Bright |
| Handle Material | Aluminum |
| Components Material | Steel |
| Thread Standard | UNC |
| Handle Length | 96 mm |
| Center Height - Maximum | 18 mm |
| Thread Length | 30 mm |
| Handle Width | 24 mm |
| Clamping Distance | 1.5 mm |
| Hardware Material | Stainless Steel, Plastic, Steel |
| Measurement System | Inch |
| Thread Material | Steel |
| Clamped Height | 28.5 mm |
| Clamping Force - Maximum | 8 kN |
| Package Quantity | 1 |
