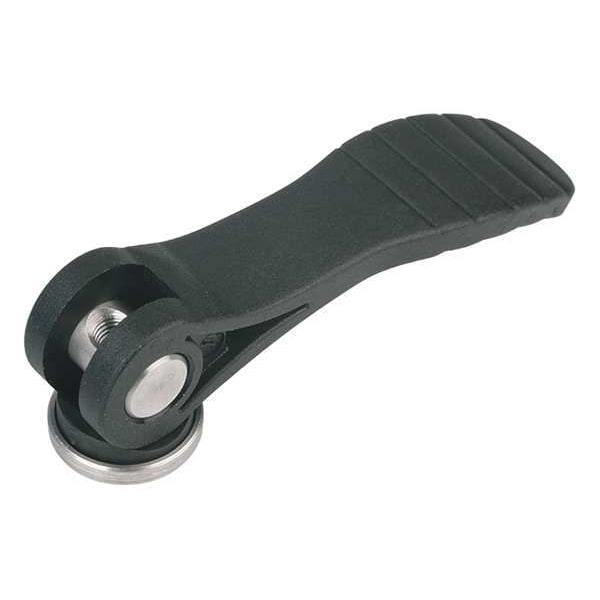

Cam Lever, Plastic Handle, Black, Size: 2, D=5/16-18, A=100, B=33, Comp: Stainless Steel
| Item | Cam Handle |
|---|---|
| Handle Type | Cam Lever |
| Overall Width | 33 mm |
| Thread Type | Internal |
| Overall Length | 110 mm |
| Width | 33 mm |
| Material | Plastic |
| Finish | Uncoated |
| Type | Internal Threads |
| Thread Size | 5/16"-18 |
| Color | Black |
| Standards | RoHS |
| Components Material | Stainless Steel |
| Handle Material | Plastic |
| Handle Width | 24.2 mm |
| Thread Material | Stainless Steel |
| Handle Length | 100 mm |
| Center Height - Maximum | 16.2 mm |
| Hardware Material | Stainless Steel, Steel |
| Clamping Distance | 1.5 mm |
| Clamping Force - Maximum | 5 kN |
| Measurement System | Inch |
| Clamped Height | 27.7 mm |
| Package Quantity | 1 |
