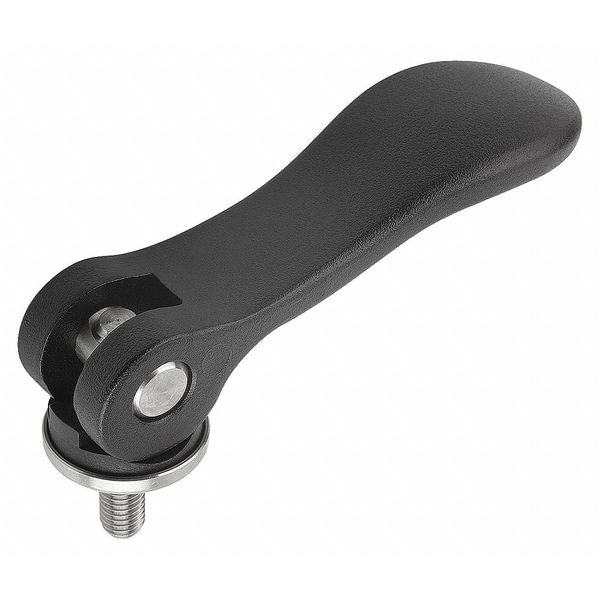

Cam Lever Size: 0 10-32X20, A=52, 3, B=18, Aluminum Black Powder-Coated, Comp: Steel
| Item | Cam Handle |
|---|---|
| Handle Type | Cam Lever |
| Overall Width | 18 mm |
| Thread Type | External |
| Overall Length | 59.1 mm |
| Material | Cast aluminum |
| Thread Size | #10-32 |
| Type | Internal Threads |
| Screw Length | 20 mm |
| Width | 18 mm |
| Finish | Uncoated, Powder Coated |
| Thread Standard | UNF |
| Color | Black |
| Standards | RoHS, EN AC-46200 |
| Features | Stainless Steel Hinge Pin |
| Components Material | Steel |
| Handle Material | Aluminum |
| Finish - Machining | Powder Coated |
| Hardware Material | Stainless Steel, Plastic, Steel |
| Clamped Height | 17 mm |
| Handle Width | 13 mm |
| Clamping Distance | 1 mm |
| Center Height - Maximum | 11.2 mm |
| Handle Length | 52.3 mm |
| Clamping Force - Maximum | 2.5 kN |
| Measurement System | Inch |
| Thread Material | Steel |
| Thread Length | 20 mm |
| Package Quantity | 1 |
