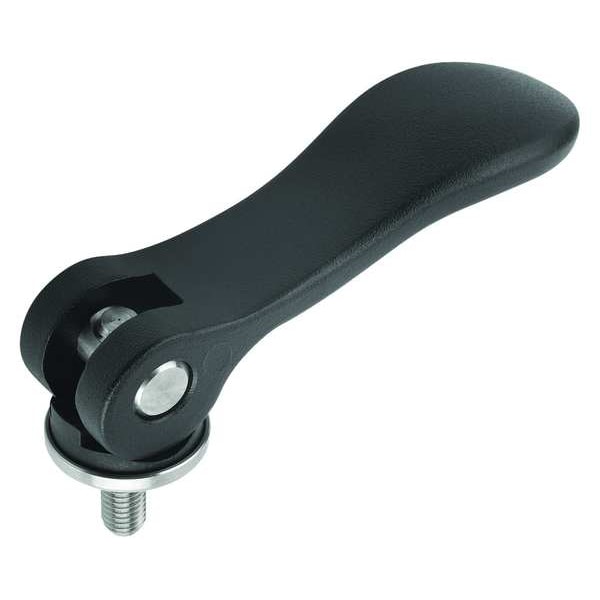

Cam Lever Size: 1 M06X20, A=70, 4, B=21, 5, Aluminum Black Powder-Coated, Comp: Steel
| Item | Cam Handle |
|---|---|
| Handle Type | Cam Lever |
| Overall Width | 21.5 mm |
| Thread Type | External |
| Overall Length | 79.2 mm |
| Width | 0.83 |
| Material | Cast aluminum |
| Finish | Uncoated, Powder Coated |
| Thread Size | M6 |
| Type | Single Action |
| Screw Length | 20 mm |
| Components Material | Steel |
| Color | Black |
| Standards | RoHS, EN AC-46200 |
| Finish - Machining | Powder Coated |
| Features | Stainless Steel Hinge Pin |
| Handle Material | Aluminum |
| Hardware Material | Stainless Steel, Plastic, Steel |
| Thread Material | Steel |
| Clamping Force - Maximum | 4 kN |
| Center Height - Maximum | 14.5 mm |
| Clamping Distance | 1.2 mm |
| Thread Length | 20 mm |
| Clamped Height | 22 mm |
| Handle Length | 70.4 mm |
| Handle Width | 15 mm |
| Measurement System | Metric |
| Package Quantity | 1 |
