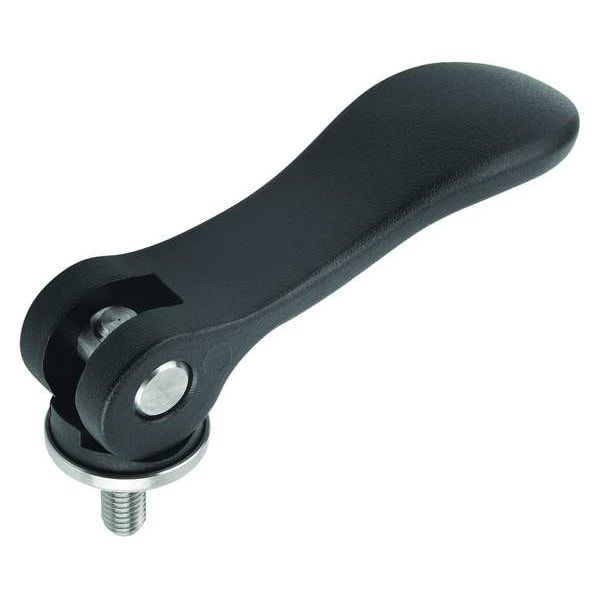

Cam Lever Size: 2 3/8-16X25, A=96, B=33, 3, Aluminum Black Powder-Coated, Comp: Steel
| Item | Cam Handle |
|---|---|
| Handle Type | Cam Lever |
| Overall Width | 33.3 mm |
| Thread Type | External |
| Overall Length | 108 mm |
| Thread Size | 3/8"-16 |
| Material | Cast aluminum |
| Width | 1.30 |
| Type | Single Action |
| Finish | Uncoated, Powder Coated |
| Screw Length | 25 mm |
| Components Material | Steel |
| Color | Black |
| Standards | RoHS, EN AC-46200 |
| Handle Material | Aluminum |
| Thread Standard | UNC |
| Features | Stainless Steel Hinge Pin |
| Finish - Machining | Powder Coated |
| Clamping Distance | 1.5 mm |
| Clamped Height | 28.5 mm |
| Handle Length | 96 mm |
| Thread Material | Steel |
| Thread Length | 25 mm |
| Measurement System | Inch |
| Hardware Material | Stainless Steel, Plastic, Steel |
| Handle Width | 24 mm |
| Center Height - Maximum | 18 mm |
| Clamping Force - Maximum | 8 kN |
| Package Quantity | 1 |
