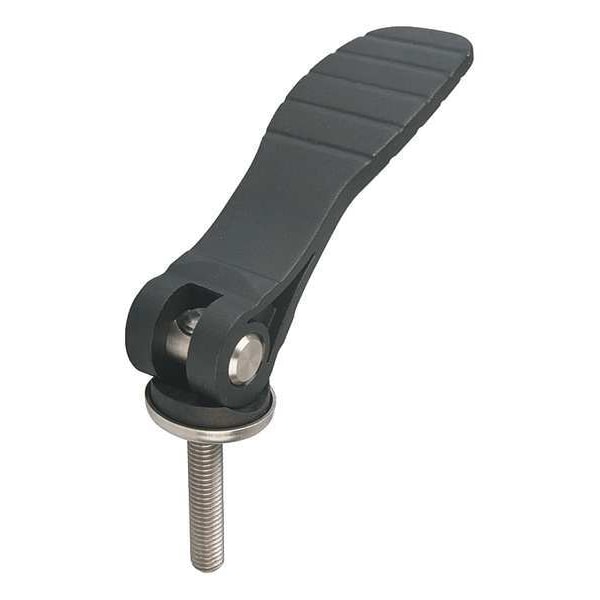

Cam Lever Size: 2 M08X25, A=100, B=33, Polyamide Black, Comp: Steel
| Item | Cam Handle |
|---|---|
| Handle Type | Cam Lever |
| Overall Width | 33 mm |
| Thread Type | External |
| Overall Length | 110 mm |
| Screw Size | 25mm |
| Thread Size | M8 |
| Screw Length | 25 mm |
| Material | Thermoplastic Handle/Steel Components |
| Width | 24 mm |
| Type | External Thread |
| Finish | Uncoated |
| Components Material | Steel |
| Thread Pitch | 1.25 mm |
| Handle Material | Plastic |
| Color | Black |
| Standards | RoHS |
| Clamped Height | 27.7 mm |
| Handle Width | 24.2 mm |
| Handle Length | 100 mm |
| Center Height - Maximum | 16.2 mm |
| Hardware Material | Stainless Steel, Steel |
| Thread Material | Steel |
| Clamping Distance | 1.5 mm |
| Measurement System | Metric |
| Thread Length | 25 mm |
| Clamping Force - Maximum | 5 kN |
| Package Quantity | 1 |
