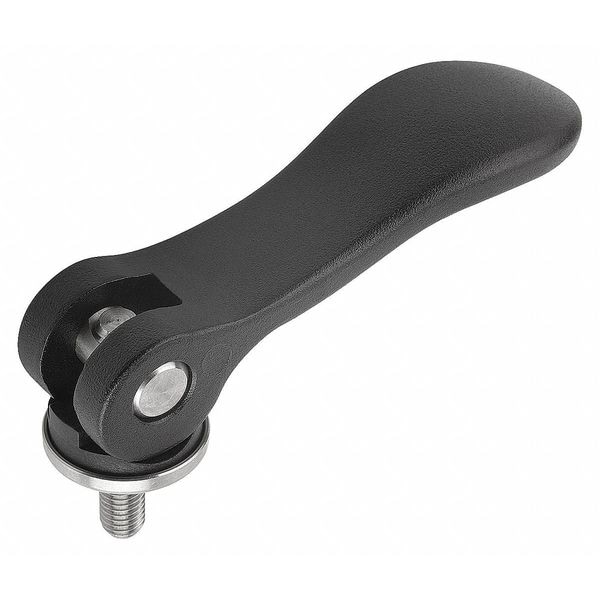

Cam Lever Size: 9 M03X10, A=36, 2, B=14, 4, Aluminum Black Powder-Coated, Comp: Stainless Steel
| Item | Cam Handle |
|---|---|
| Handle Type | Cam Lever |
| Overall Width | 14.4 mm |
| Thread Type | External |
| Overall Length | 41.7 mm |
| Material | Cast aluminum |
| Finish | Uncoated, Powder Coated |
| Thread Size | M3 |
| Width | 18 mm |
| Screw Length | 10 mm |
| Type | Internal Threads |
| Components Material | Stainless Steel |
| Features | Stainless Steel Hinge Pin |
| Color | Black |
| Standards | RoHS, EN AC-46200 |
| Finish - Machining | Powder Coated |
| Handle Material | Aluminum |
| Thread Material | Stainless Steel |
| Hardware Material | Stainless Steel, Plastic, Steel |
| Handle Width | 11.5 mm |
| Clamping Force - Maximum | 1.5 kN |
| Clamped Height | 13 mm |
| Center Height - Maximum | 9 mm |
| Handle Length | 36.2 mm |
| Clamping Distance | 1 mm |
| Thread Length | 10 mm |
| Measurement System | Metric |
| Package Quantity | 1 |
