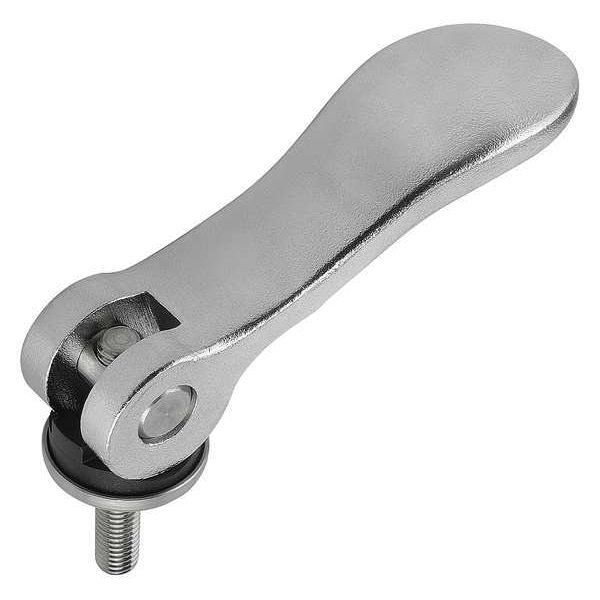

Cam Lever, Stainless Steel Electropolished, Size: 2, 3/8-16X25, A=96, B=33, 3, Comp: Stainless Steel
| Item | Cam Handle |
|---|---|
| Handle Type | Cam Lever |
| Overall Width | 33.3 mm |
| Thread Type | External |
| Overall Length | 108 mm |
| Finish | Uncoated, Electropolished |
| Thread Size | 3/8"-16 |
| Width | 33.2 mm |
| Material | Stainless Steel |
| Type | Internal Threads |
| Screw Length | 25 mm |
| Finish - Machining | Bright |
| Standards | RoHS, AISI 316 |
| Handle Material | Stainless Steel |
| Features | Screw and Washer, Stainless Steel Hinge Pin |
| Components Material | Stainless Steel |
| Thread Standard | UNC |
| Hardware Material | Stainless Steel, Plastic |
| Center Height - Maximum | 18 mm |
| Handle Width | 24 mm |
| Measurement System | Inch |
| Clamping Force - Maximum | 8 kN |
| Handle Length | 96 mm |
| Clamped Height | 28.5 mm |
| Thread Material | Stainless Steel |
| Clamping Distance | 1.5 mm |
| Thread Length | 25 mm |
| Package Quantity | 1 |
