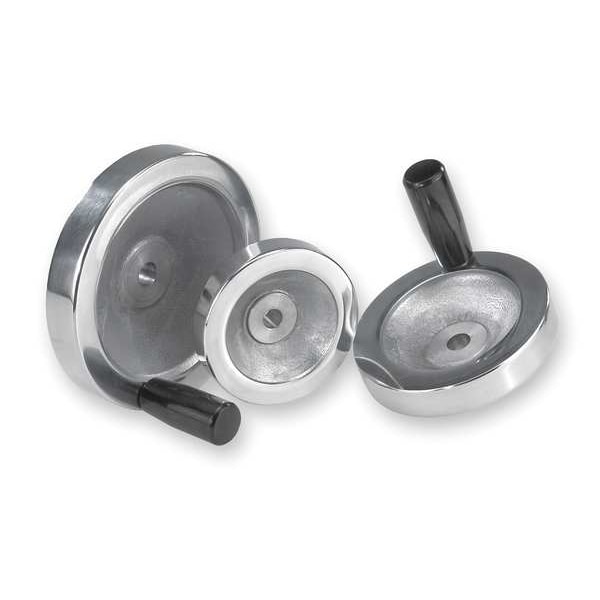

Disc Handwheel Diameter D1= 100 mm, Reamed Hole D2= 0.5" Aluminum, Comp: Thermoset, Revolving Grip
| Type | Handle |
|---|---|
| Style | Handle |
| Finish | Zinc-Plated |
| Base Dia. (In.) | 1.22 |
| Item | Hand Wheel |
| Bore | 1/2 in |
| Standards | RoHS, DIN 7708 |
| Diameter | 3.94 in |
| Material | Aluminum |
| Thread Size | M6 |
| Handle | Yes |
| Outside Dia. | 100 mm |
| Handle Type | Revolving |
| Bore Dia. | 1/2 in |
| Finish - Machining | Bright (Uncoated) |
| Features | Not Applicable |
| Handle Material | Thermoset |
| Wheel Material | Aluminum |
| Bore Diameter | 1/2 in |
| Overall Diameter | 100 mm |
| Wheel Height | 34 mm |
| Includes Handle | Handle Included |
| Hub Height | 17 mm |
| Hub Diameter | 31 mm |
| Wheel Type | Solid |
| Package Quantity | 1 |
