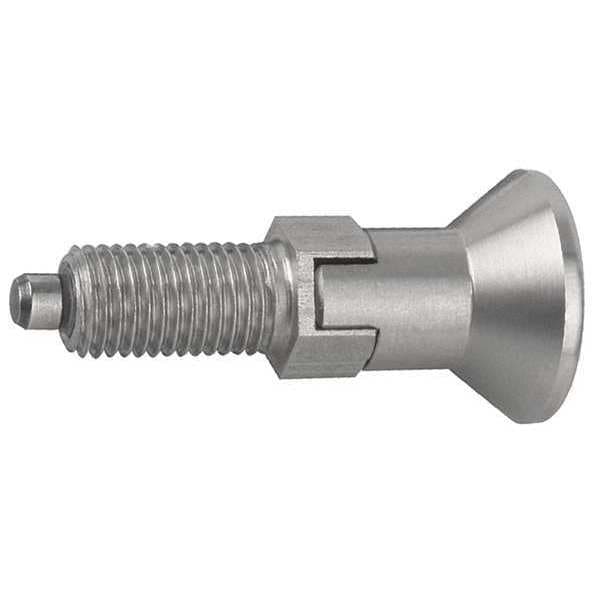

Indexing Plunger, All SS, Size: 2 D1= 1/2-13, D=6, Style C Lockout Type WO Locknut, Pin Not Hard
| Item | Indexing Plunger |
|---|---|
| Style | Knob |
| Grip Length | 1-7/32 in |
| Pin Dia. | 15/64 in |
| Knob Type | Lock Out |
| Material | Stainless Steel |
| Finish | Unfinished |
| Barrel Height | 0.66 in |
| Barrel Dia. | 43/64 in |
| Length | 2-21/64 in |
| Thread Size | 1/2"-13 |
| Tip Length | 0.236 in |
| Plunger Dia. | 6 mm |
| Tip Dia. | 0.23 in |
| Handle Type | Knob |
| Thread Length | 17 mm |
| Plunger Material | Stainless Steel |
| Body Material | Stainless Steel |
| Plunger Projection | 6 mm |
| With Locking Plunger | Yes |
| Retractable | Yes |
| Initial Nose Force | 6 N |
| Final Nose Force | 14 N |
| Plunger Width | 6 mm |
| Plunger Finish | Uncoated |
| Standards | REACH 1907/2006 (EC), RoHS 2011/65/EU |
| Overall Length | 52 mm |
| Body Length | 46 mm |
| Includes Locking Plunger | Locking Plunger Included |
| Retractability | Retractable |
| Includes Thread-Locking Element | Thread-Locking Element Included |
| Body Diameter | 14 mm |
| Body Finish | Uncoated |
| Handle Diameter | 25 mm |
| Plunger Material Grade | 303 |
| Body Material Grade | 303 |
| Handle Material | Stainless Steel |
| Nose Shape | Pin |
| Measurement System | Inch |
| Nose Material | Stainless Steel |
| Package Quantity | 1 |
