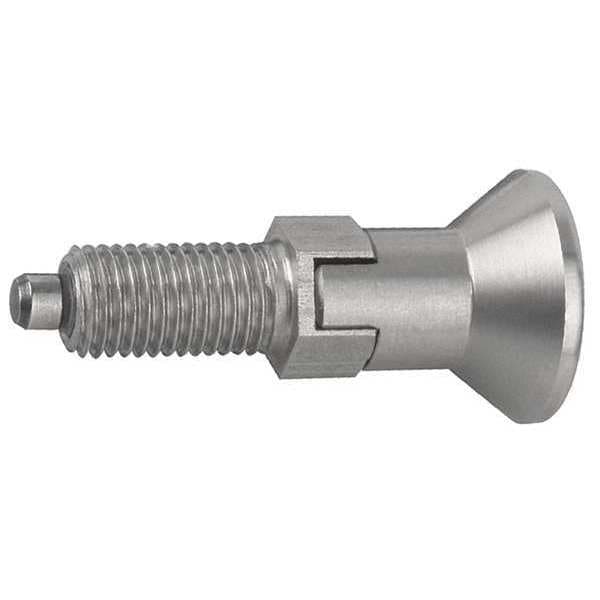

Indexing Plunger, All SS, Size: 3 D1= M16X1, 5, D=8, Style C Lockout Type WO Locknut, Pin Hard
| Item | Indexing Plunger |
|---|---|
| Style | Knob |
| Grip Length | 1-39/64 in |
| Pin Dia. | 5/16 in |
| Knob Type | Lock Out |
| Material | Stainless Steel |
| Finish | Unfinished |
| Plunger Dia. | 8 mm |
| Tip Length | 0.314 in |
| Barrel Dia. | 29/32 in |
| Thread Size | M16x1.5 |
| Tip Dia. | 0.31 in |
| Length | 3-1/32 in |
| Barrel Height | 0.9 in |
| Thread Pitch | 1.5 mm |
| Plunger Finish | Uncoated |
| Retractable | Yes |
| Initial Nose Force | 15 N |
| Plunger Material | Stainless Steel |
| Final Nose Force | 35 N |
| With Locking Plunger | Yes |
| Plunger Projection | 8 mm |
| Standards | REACH 1907/2006 (EC), RoHS 2011/65/EU |
| Plunger Width | 8 mm |
| Body Material | Stainless Steel |
| Overall Length | 68 mm |
| Handle Type | Knob |
| Thread Length | 23 mm |
| Body Length | 60 mm |
| Retractability | Retractable |
| Plunger Material Grade | 420 |
| Handle Material | Stainless Steel |
| Body Finish | Hardened |
| Measurement System | Metric |
| Includes Thread-Locking Element | Thread-Locking Element Included |
| Body Diameter | 19 mm |
| Body Material Grade | 303 |
| Handle Diameter | 33 mm |
| Includes Locking Plunger | Locking Plunger Included |
| Nose Shape | Ball |
| Nose Material | Stainless Steel |
| Package Quantity | 1 |
