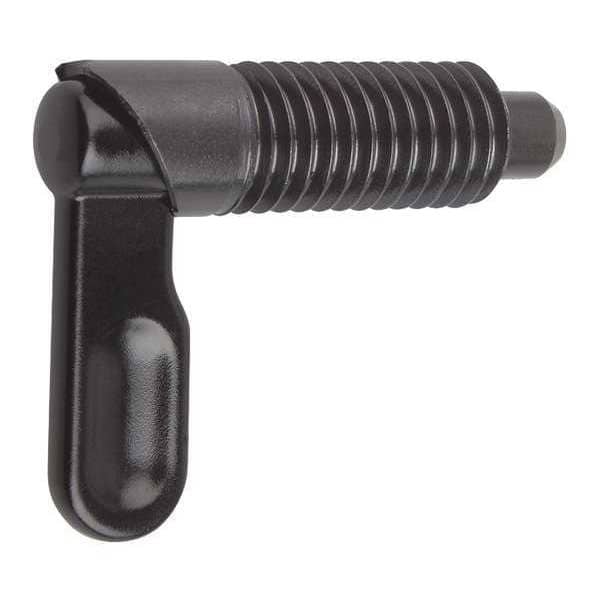

Indexing Plunger, Cam-Action, D=5, D1= M12X1.5, Steel, Style C, Without Locknut, Grip Powder Coated
| Item | Indexing Plunger |
|---|---|
| Style | Knob |
| Grip Length | 1-1/16 in |
| Pin Dia. | 3/16 in |
| Knob Type | Cam Action |
| Material | Steel |
| Finish | Black Oxide |
| Tip Length | 0.314 in |
| Tip Dia. | 0.19 in |
| Barrel Height | 0.98 in |
| Plunger Dia. | 5 mm |
| Barrel Dia. | 63/64 in |
| Length | 2-23/64 in |
| Thread Size | M12x1.5 |
| Handle Material | Steel |
| Standards | REACH 1907/2006 (EC), RoHS 2011/65/EU |
| Thread | Fully Threaded |
| Thread Length | 25 mm |
| With Locking Plunger | Yes |
| Body Material | Steel |
| Retractable | Yes |
| Body Length | 38.8 mm |
| Overall Length | 46.8 mm |
| Body Finish | Black Oxide |
| Plunger Finish | Black Oxide |
| Handle Type | Lever |
| Plunger Width | 5 mm |
| Thread Pitch | 1.5 mm |
| Initial Nose Force | 8 N |
| Plunger Material | Steel |
| Final Nose Force | 15 N |
| Plunger Projection | 8 mm |
| Handle Length | 30 mm |
| Measurement System | Metric |
| Retractability | Retractable |
| Includes Thread-Locking Element | Thread-Locking Element Included |
| Body Diameter | 12 mm |
| Handle Width | 10.8 mm |
| Nose Shape | Ball |
| Handle Diameter | 12 mm |
| Includes Locking Plunger | Locking Plunger Included |
| Body Material Grade | 5.8 |
| Plunger Material Grade | 5.8 |
| Nose Material | Steel |
| Package Quantity | 1 |
