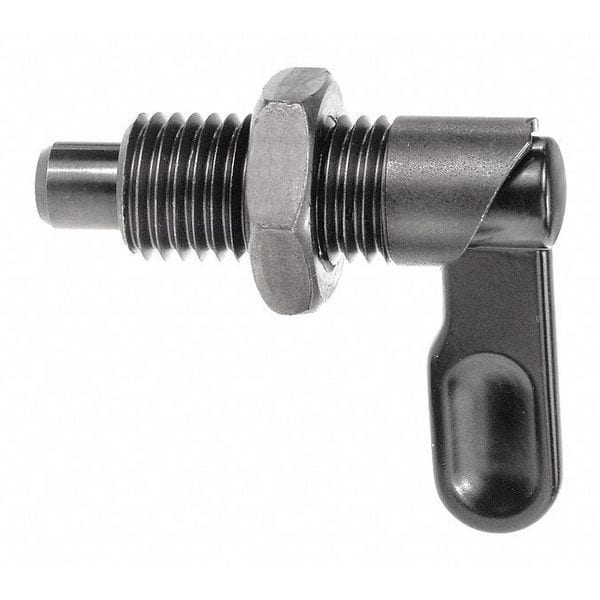

Indexing Plunger, Cam-Action, D=8, D1= M16, Steel, Style D, With Locknut, Grip Powder Coated
| Item | Indexing Plunger |
|---|---|
| Style | Knob |
| Grip Length | 1-37/64 in |
| Pin Dia. | 5/16 in |
| Knob Type | Cam Action |
| Material | Steel |
| Finish | Black Oxide |
| Tip Dia. | 0.31 in |
| Barrel Height | 1-1/4 in |
| Tip Length | 0.393 in |
| Plunger Dia. | 8 mm |
| Barrel Dia. | 1-17/64 in |
| Length | 2-23/64 in |
| Thread Size | M16 |
| Plunger Projection | 10 mm |
| Plunger Width | 8 mm |
| Thread | Fully Threaded |
| Body Length | 50.4 mm |
| Handle Type | Lever |
| Plunger Finish | Black Oxide |
| Body Finish | Black Oxide |
| Overall Length | 60.4 mm |
| Retractable | Yes |
| With Locking Plunger | Yes |
| Thread Length | 32 mm |
| Initial Nose Force | 15 N |
| Body Material | Steel |
| Handle Material | Steel |
| Final Nose Force | 35 N |
| Standards | REACH 1907/2006 (EC), RoHS 2011/65/EU |
| Plunger Material | Steel |
| Retractability | Retractable |
| Handle Diameter | 16 mm |
| Nose Shape | Ball |
| Handle Width | 14.4 mm |
| Handle Length | 40 mm |
| Includes Locking Plunger | Locking Plunger Included |
| Includes Thread-Locking Element | Thread-Locking Element Included |
| Body Material Grade | 5.8 |
| Measurement System | Metric |
| Body Diameter | 16 mm |
| Plunger Material Grade | 5.8 |
| Nose Material | Steel |
| Package Quantity | 1 |
