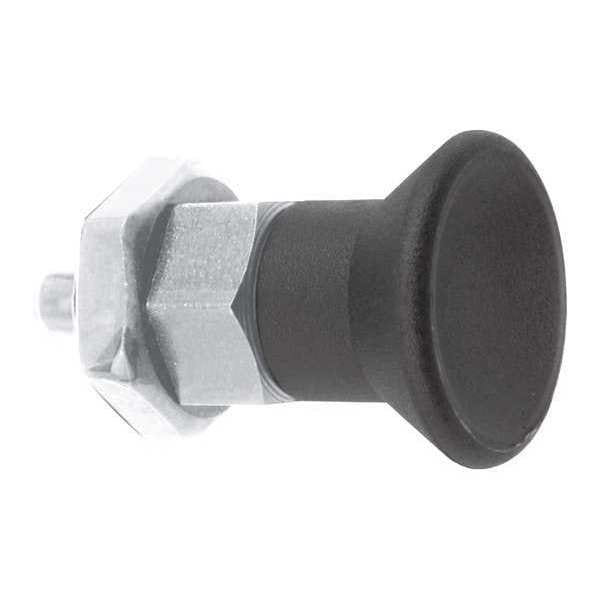

Indexing Plunger, Short, Size: 0, D1= 5/16-24, D=4, Style B, Non-Lockout W. Locknut, SS Pin Not Hard
| Item | Indexing Plunger |
|---|---|
| Style | Knob |
| Grip Length | 11/16 in |
| Pin Dia. | 5/32 in |
| Knob Type | Pull Knob |
| Material | Stainless Steel |
| Finish | Unfinished |
| Thread Size | 5/16"-24 |
| Plunger Dia. | 4 mm |
| Barrel Height | 0.23 in |
| Length | 1-39/64 in |
| Barrel Dia. | 15/64 in |
| Tip Length | 0.157 in |
| Tip Dia. | 0.15 in |
| Final Nose Force | 12 N |
| Handle Material | Thermoplastic |
| Plunger Finish | Uncoated |
| With Locking Plunger | No |
| Plunger Material | Stainless Steel |
| Handle Color | Black |
| Plunger Projection | 4 mm |
| Overall Length | 29.5 mm |
| Retractable | Yes |
| Body Material | Stainless Steel |
| Plunger Width | 10 mm |
| Handle Type | Knob |
| Thread-Locking Element Included | No |
| Standards | REACH 1907/2006 (EC), RoHS 2011/65/EU |
| Thread Length | 6 mm |
| Initial Nose Force | 6 N |
| Body Finish | Uncoated |
| Nose Shape | Pin |
| Retractability | Retractable |
| Body Length | 25.5 mm |
| Handle Diameter | 18 mm |
| Body Diameter | 10 mm |
| Measurement System | Inch |
| Includes Thread-Locking Element | Thread-Locking Element Not Included |
| Includes Locking Plunger | Locking Plunger Not Included |
| Body Material Grade | 303 |
| Plunger Material Grade | 303 |
| Nose Material | Stainless Steel |
| Package Quantity | 1 |
