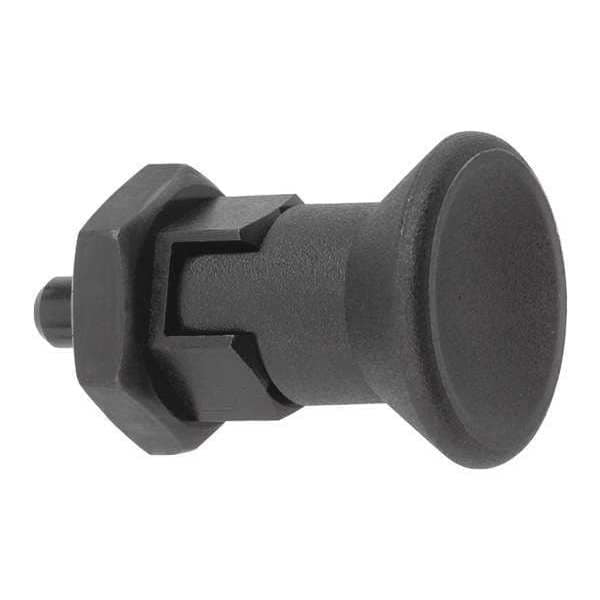

Indexing Plunger, Short, Size: 3, D1= M16X1.5, D=8, Style D, Lockout Type W. Locknut, Pin Hardened
| Item | Indexing Plunger |
|---|---|
| Style | Knob |
| Grip Length | 1-17/64 in |
| Pin Dia. | 5/16 in |
| Knob Type | Lock Out |
| Material | Steel |
| Finish | Black Oxide |
| Tip Dia. | 0.31 in |
| Thread Size | M16x1.5 |
| Barrel Dia. | 15/32 in |
| Tip Length | 0.314 in |
| Barrel Height | 0.47 in |
| Plunger Dia. | 8 mm |
| Length | 2-23/64 in |
| Plunger Width | 8 mm |
| Handle Color | Black |
| Standards | REACH 1907/2006 (EC), RoHS 2011/65/EU |
| Plunger Projection | 8 mm |
| Plunger Finish | Black Oxide |
| Initial Nose Force | 14 N |
| Overall Length | 54 mm |
| With Locking Plunger | Yes |
| Handle Material | Thermoplastic |
| Handle Type | Knob |
| Body Material | Steel |
| Plunger Material | Steel |
| Final Nose Force | 28 N |
| Body Finish | Black Oxide |
| Thread Pitch | 1.5 mm |
| Retractable | Yes |
| Thread Length | 12 mm |
| Body Material Grade | 5.8 |
| Plunger Material Grade | 5.8 |
| Nose Shape | Ball |
| Body Diameter | 19 mm |
| Handle Diameter | 33 mm |
| Measurement System | Metric |
| Body Length | 46 mm |
| Retractability | Retractable |
| Includes Thread-Locking Element | Thread-Locking Element Included |
| Includes Locking Plunger | Locking Plunger Included |
| Nose Material | Steel |
| Package Quantity | 1 |
