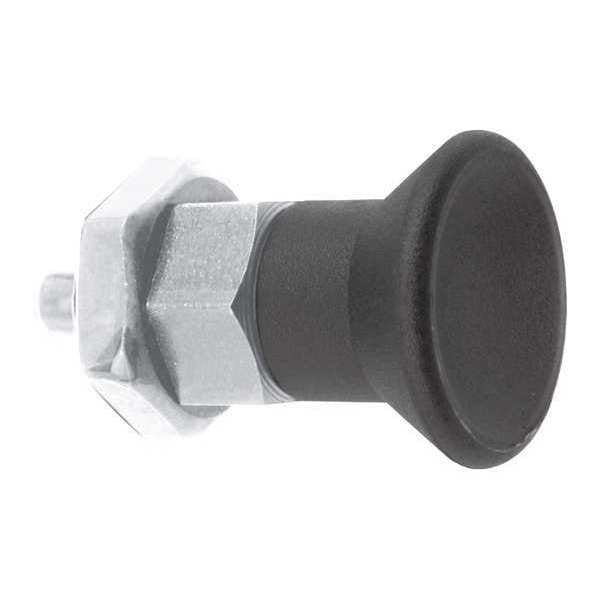

Indexing Plunger, Short, Size: 4, D1= 3/4-10, D=10, Style B, Non-Lockout W. Locknut, SS Pin Not Hard
| Item | Indexing Plunger |
|---|---|
| Style | Knob |
| Grip Length | 1-11/32 in |
| Pin Dia. | 25/64 in |
| Knob Type | Pull Knob |
| Material | Stainless Steel |
| Finish | Unfinished |
| Barrel Height | 0.59 in |
| Tip Length | 0.393 in |
| Length | 2-13/32 in |
| Barrel Dia. | 19/32 in |
| Thread Size | 3/4"-10 |
| Tip Dia. | 0.39 in |
| Plunger Dia. | 10 mm |
| Overall Length | 61 mm |
| Handle Color | Black |
| Plunger Material | Stainless Steel |
| With Locking Plunger | No |
| Final Nose Force | 32 N |
| Handle Type | Knob |
| Thread Length | 15 mm |
| Plunger Projection | 10 mm |
| Body Material | Stainless Steel |
| Thread-Locking Element Included | No |
| Handle Material | Thermoplastic |
| Plunger Finish | Uncoated |
| Retractable | Yes |
| Plunger Width | 22 mm |
| Standards | REACH 1907/2006 (EC), RoHS 2011/65/EU |
| Initial Nose Force | 15 N |
| Body Material Grade | 303 |
| Includes Locking Plunger | Locking Plunger Not Included |
| Body Finish | Uncoated |
| Nose Shape | Pin |
| Measurement System | Inch |
| Plunger Material Grade | 303 |
| Handle Diameter | 33 mm |
| Retractability | Retractable |
| Includes Thread-Locking Element | Thread-Locking Element Not Included |
| Body Length | 51 mm |
| Body Diameter | 22 mm |
| Nose Material | Stainless Steel |
| Package Quantity | 1 |
