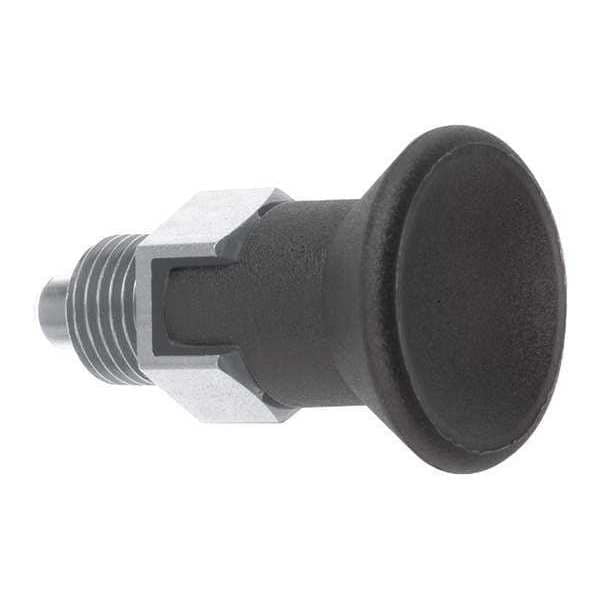

Indexing Plunger, Short, Size: 9, D1= M06X0.75, D=3, Style C, Lockout Type WO Locknut, SS
| Item | Indexing Plunger |
|---|---|
| Style | Knob |
| Grip Length | 21/32 in |
| Pin Dia. | 7/64 in |
| Knob Type | Lock Out |
| Material | Stainless Steel |
| Finish | Unfinished |
| Tip Dia. | 0.11 in |
| Plunger Dia. | 3 mm |
| Length | 1-1/32 in |
| Thread Size | M6x0.75 |
| Barrel Height | 0.23 in |
| Barrel Dia. | 15/64 in |
| Tip Length | 1.377 in |
| Plunger Width | 3 mm |
| Retractable | Yes |
| Final Nose Force | 10 N |
| Plunger Finish | Uncoated |
| Thread Pitch | 0.75 mm |
| Handle Type | Knob |
| Overall Length | 25.5 mm |
| Body Material | Stainless Steel |
| With Locking Plunger | Yes |
| Handle Material | Thermoplastic |
| Handle Color | Black |
| Standards | REACH 1907/2006 (EC), RoHS 2011/65/EU |
| Initial Nose Force | 4 N |
| Thread Length | 6 mm |
| Plunger Projection | 3.5 mm |
| Plunger Material | Stainless Steel |
| Body Length | 22 mm |
| Retractability | Retractable |
| Body Diameter | 8 mm |
| Handle Diameter | 14 mm |
| Includes Locking Plunger | Locking Plunger Included |
| Plunger Material Grade | 303 |
| Measurement System | Metric |
| Body Material Grade | 303 |
| Includes Thread-Locking Element | Thread-Locking Element Included |
| Body Finish | Uncoated |
| Nose Shape | Ball |
| Nose Material | Stainless Steel |
| Package Quantity | 1 |
