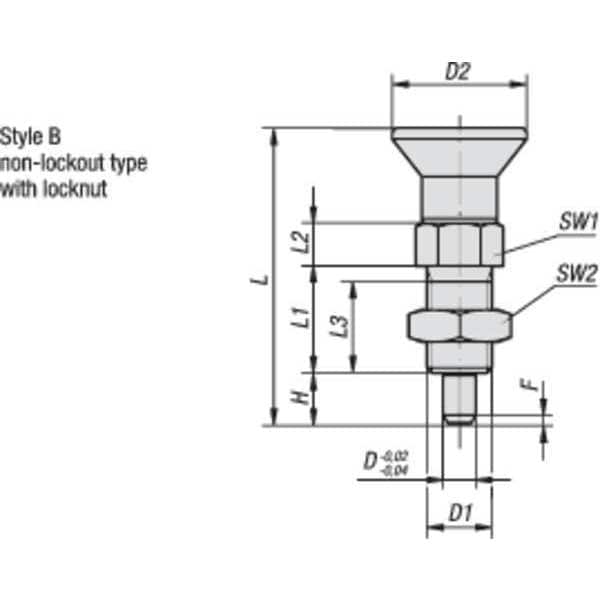

Indexing Plunger, Size: 1, D1= 3/8-24, D=5, Style B, Non-Lockout W. Locknut, SS Not Hardened
| Item | Indexing Plunger |
|---|---|
| Style | Knob |
| Grip Length | 57/64 in |
| Pin Dia. | 3/16 in |
| Knob Type | Pull Knob |
| Material | Stainless Steel |
| Finish | Unfinished |
| Barrel Dia. | 19/32 in |
| Length | 1-19/64 in |
| Barrel Height | 0.59 in |
| Thread Size | 3/8"-24 |
| Plunger Dia. | 5 mm |
| Tip Length | 0.314 in |
| Tip Dia. | 0.19 in |
| Initial Nose Force | 5 N |
| Plunger Material | Stainless Steel |
| Handle Material | Thermoplastic |
| With Locking Plunger | No |
| Final Nose Force | 16 N |
| Plunger Projection | 8 mm |
| Handle Type | Knob |
| Plunger Width | 13 mm |
| Body Material | Stainless Steel |
| Handle Color | Black |
| Standards | REACH 1907/2006 (EC), RoHS 2011/65/EU |
| Retractable | Yes |
| Thread Length | 15 mm |
| Plunger Finish | Uncoated |
| Overall Length | 46.5 mm |
| Thread-Locking Element Included | No |
| Plunger Material Grade | 303 |
| Handle Diameter | 21 mm |
| Retractability | Retractable |
| Body Diameter | 13 mm |
| Body Finish | Uncoated |
| Body Length | 38.5 mm |
| Includes Thread-Locking Element | Thread-Locking Element Not Included |
| Body Material Grade | 303 |
| Measurement System | Inch |
| Nose Shape | Pin |
| Includes Locking Plunger | Locking Plunger Included |
| Nose Material | Stainless Steel |
| Package Quantity | 1 |
