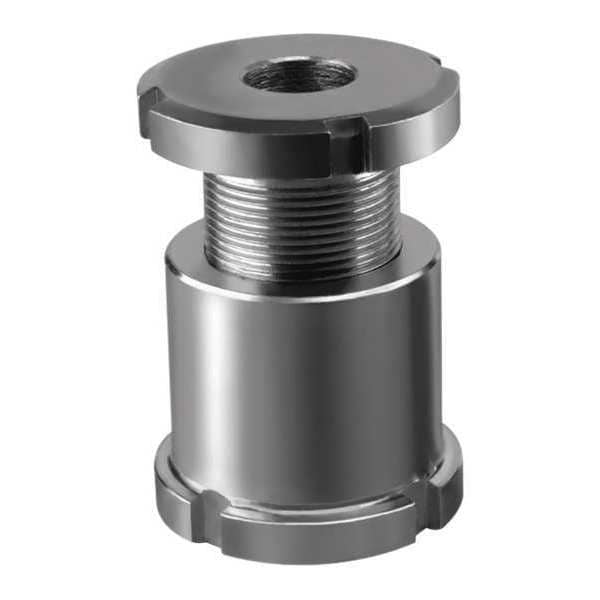

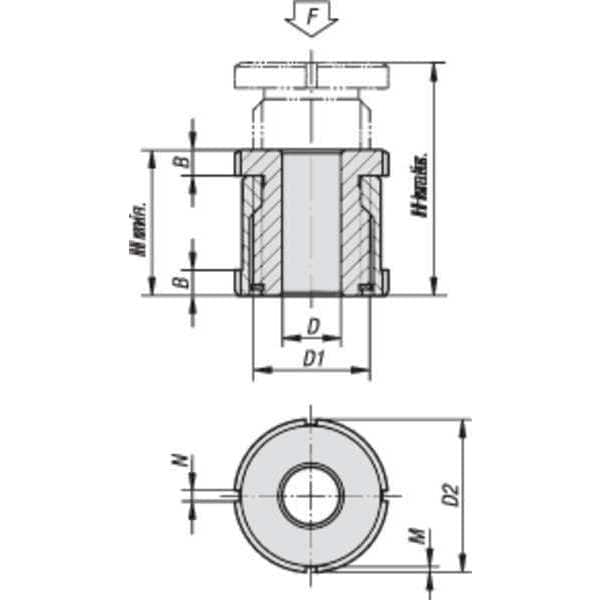

Leveling Set, Standard, D=22 Carbon Steel, D2= 58
| Item | Adjustment Bolt |
|---|---|
| Bolt Material | Steel |
| Bolt Finish | Zinc Plated |
| Center Hole Dia. | 22 mm |
| Use with Screw Size | M20 |
| Bolt Thread Size | M40 x 1.5 |
| Bolt Outside Dia. | 58 mm |
| Min. Bolt Height | 54 mm |
| Max. Bolt Height | 86 mm |
| Max. Down Force | 210 kN |
| Shoulder Height | 9 mm |
| Spanner Notch Depth | 2.5 mm |
| Spanner Notch Width | 6 mm |
| Material | Steel |
| Finish | Trivalent Blue Passivate |
| Bolt Height - Maximum | 86 mm |
| Center Hole Diameter | 22 mm |
| Overall Diameter | 58 mm |
| Bolt Height - Minimum | 54 mm |
| Down Force - Maximum | 210 kN |
| Compatible Screw Size | M20 |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
