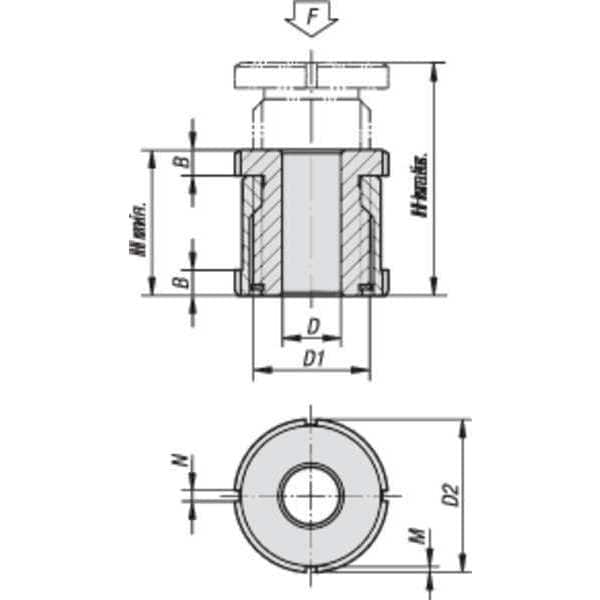

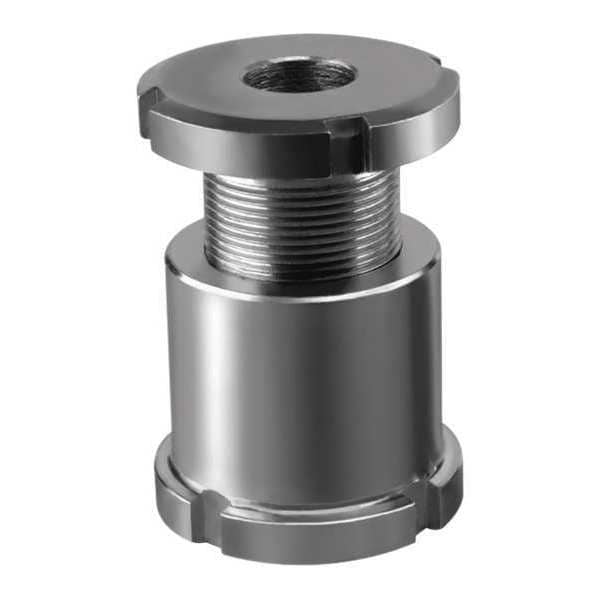

Leveling Set, Standard, D=9 Stainless Steel, D2= 32
| Item | Adjustment Bolt |
|---|---|
| Bolt Material | Stainless Steel |
| Bolt Finish | Bright |
| Center Hole Dia. | 9 mm |
| Use with Screw Size | M8 |
| Bolt Thread Size | M20 x 1 |
| Bolt Outside Dia. | 32 mm |
| Min. Bolt Height | 35 mm |
| Max. Bolt Height | 55 mm |
| Shoulder Height | 6 mm |
| Spanner Notch Depth | 2 mm |
| Spanner Notch Width | 4 mm |
| Max. Down Force | 43.4 kN |
| Finish | Uncoated |
| Material | Stainless Steel |
| Down Force - Maximum | 43.4 kN |
| Compatible Screw Size | M8 |
| Bolt Height - Maximum | 55 mm |
| Bolt Height - Minimum | 35 mm |
| Overall Diameter | 32 mm |
| Center Hole Diameter | 9 mm |
| Country of Origin (subject to change) | Portugal |
| Package Quantity | 1 |
