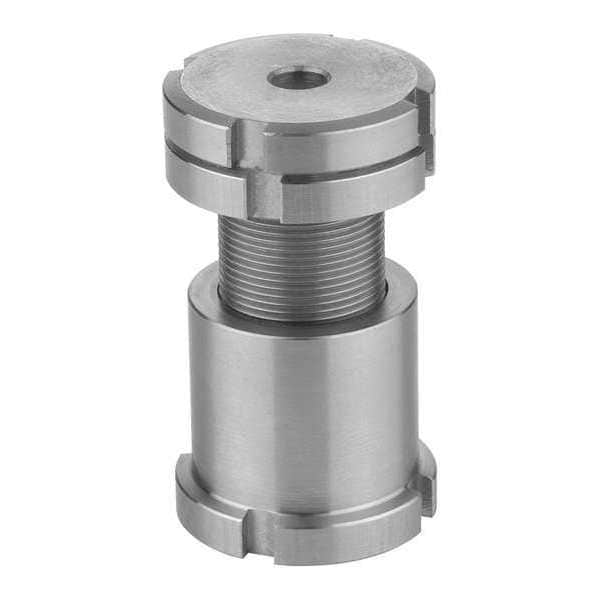

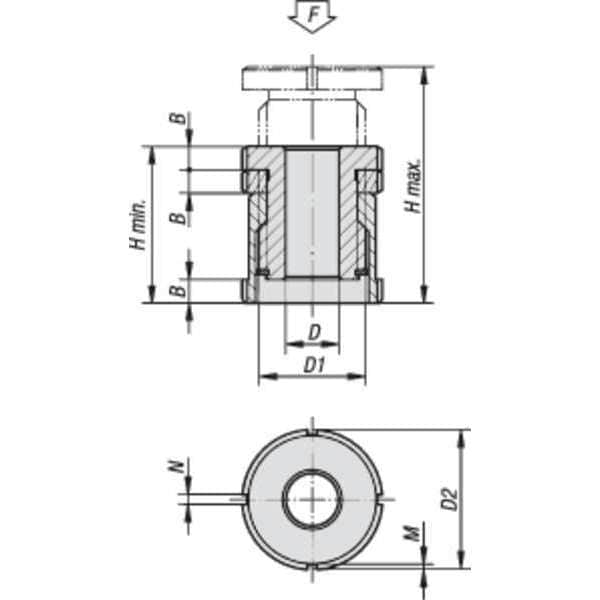

Leveling Set With Locknut, Standard, D=11 Stainless Steel, D2= 45
| Item | Adjustment Bolt |
|---|---|
| Bolt Material | Stainless Steel |
| Bolt Finish | Bright |
| Center Hole Dia. | 11 mm |
| Use with Screw Size | M10 |
| Bolt Thread Size | M30 x 1.5 |
| Bolt Outside Dia. | 45 mm |
| Min. Bolt Height | 49 mm |
| Max. Bolt Height | 67 mm |
| Shoulder Height | 7 mm |
| Spanner Notch Width | 5 mm |
| Spanner Notch Depth | 2 mm |
| Max. Down Force | 84 kN |
| Finish | Uncoated |
| Material | Stainless Steel |
| Bolt Height - Minimum | 49 mm |
| Down Force - Maximum | 84 kN |
| Overall Diameter | 45 mm |
| Compatible Screw Size | M10 |
| Center Hole Diameter | 11 mm |
| Bolt Height - Maximum | 67 mm |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
