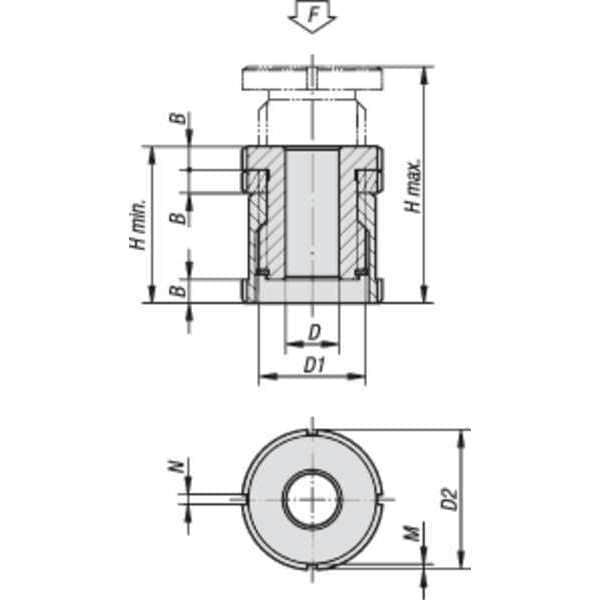

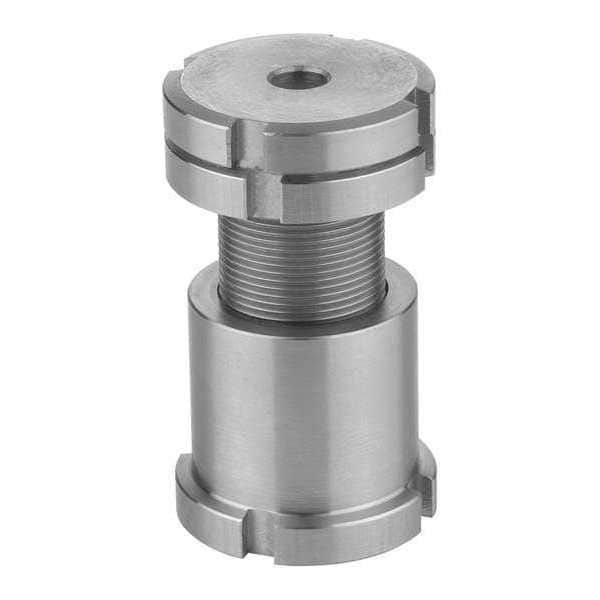

Leveling Set With Locknut, Standard, D=17, 5 Stainless Steel, D2= 58
| Item | Adjustment Bolt |
|---|---|
| Bolt Material | Stainless Steel |
| Bolt Finish | Bright |
| Center Hole Dia. | 17.5 mm |
| Use with Screw Size | M16 |
| Bolt Thread Size | M40 x 1.5 |
| Bolt Outside Dia. | 58 mm |
| Min. Bolt Height | 63 mm |
| Max. Bolt Height | 86 mm |
| Max. Down Force | 148 kN |
| Shoulder Height | 9 mm |
| Spanner Notch Width | 6 mm |
| Spanner Notch Depth | 2.5 mm |
| Finish | Uncoated |
| Material | Stainless Steel |
| Center Hole Diameter | 17.5 mm |
| Bolt Height - Maximum | 86 mm |
| Bolt Height - Minimum | 63 mm |
| Down Force - Maximum | 148 kN |
| Compatible Screw Size | M16 |
| Overall Diameter | 58 mm |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
