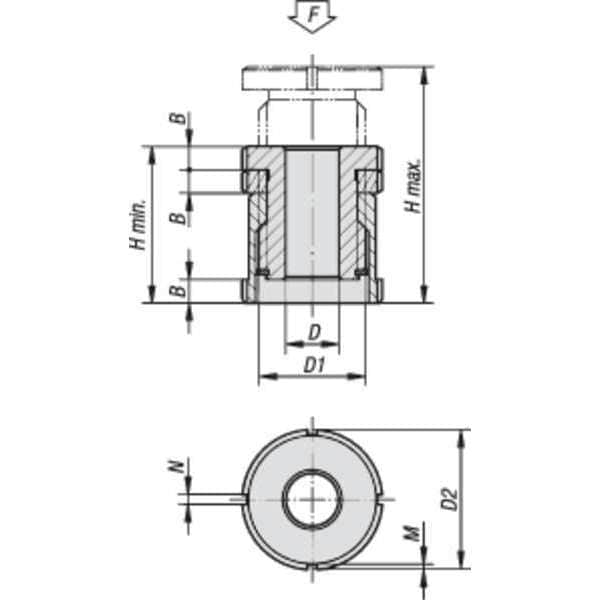

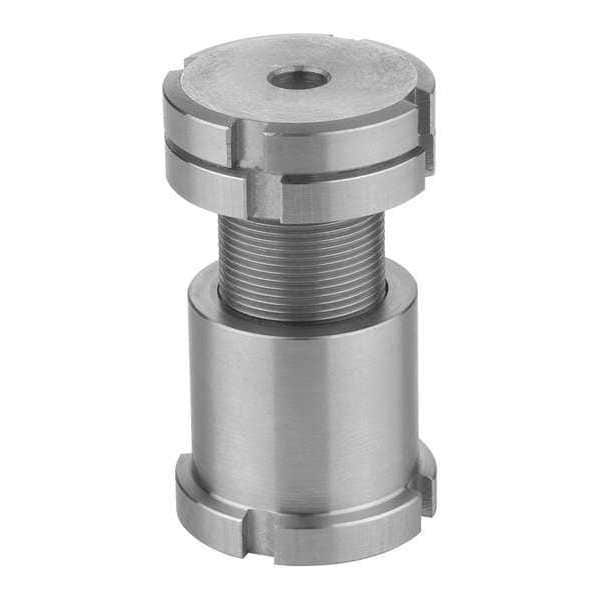

Leveling Set With Locknut, Standard, D=9 Carbon Steel, D2= 32
| Item | Adjustment Bolt |
|---|---|
| Bolt Material | Steel |
| Bolt Finish | Zinc Plated |
| Center Hole Dia. | 9 mm |
| Use with Screw Size | M8 |
| Bolt Thread Size | M20 x 1 |
| Bolt Outside Dia. | 32 mm |
| Min. Bolt Height | 41 mm |
| Max. Bolt Height | 55 mm |
| Spanner Notch Depth | 2 mm |
| Shoulder Height | 6 mm |
| Spanner Notch Width | 4 mm |
| Max. Down Force | 65 kN |
| Finish | Trivalent Blue Passivate |
| Material | Steel |
| Bolt Height - Maximum | 55 mm |
| Compatible Screw Size | M8 |
| Center Hole Diameter | 9 mm |
| Bolt Height - Minimum | 41 mm |
| Overall Diameter | 32 mm |
| Down Force - Maximum | 65 kN |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
