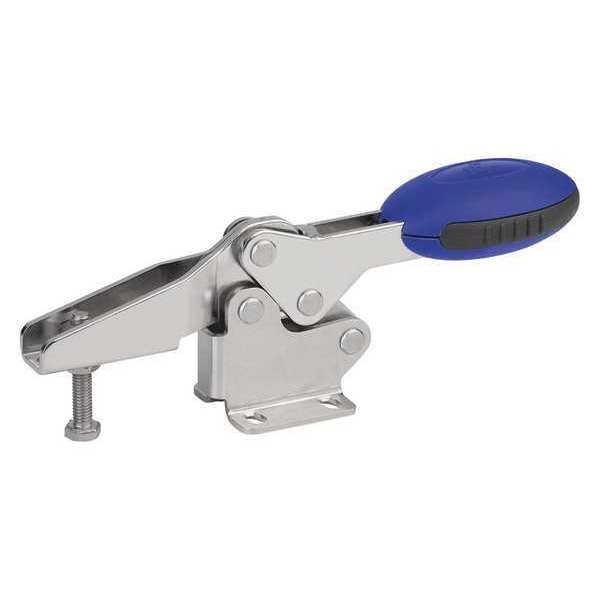

Toggle Clamp Horizontal, Foot Horiz. F1=400, Clamping Spindle M04X16, Stainless Steel, Blue
| Item | Toggle Clamp |
|---|---|
| Holding Capacity (Lb.) | 56 |
| Overall Height (In.) | 1.15 |
| Body Material | Stainless Steel |
| Overall Length (In.) | 3.61 |
| Spindle Material | Stainless Steel |
| Height Under Arm (In.) | 0.46 |
| Dia. (In.) | 0.17 |
| Includes | Adjustable Clamping Spindle, Flat Foot |
| Thread Size | M4 |
| Application | Clamping |
| Construction | Stainless Steel |
| Arm | Horizontal Closing |
| Base Mounting Centers (In.) | 0.63 x 0.63 |
| Handle | 180 deg |
| Spindle | Threaded Stainless Steel |
| Overall Length | 91.8 mm |
| Mounting Holes Center to Center - Long Side | 16 mm |
| Overall Depth | 28.7 mm |
| Handle Material | Polyamide |
| Mounting Holes Center to Center - Short Side | 16 mm |
| Holding Capacity - Maximum | 56 lbf |
| Height Under Arm | 11.7 mm |
| Handle Orientation | Horizontal |
| Spindle Thread Size | M4 x 16 |
| Package Quantity | 1 |
