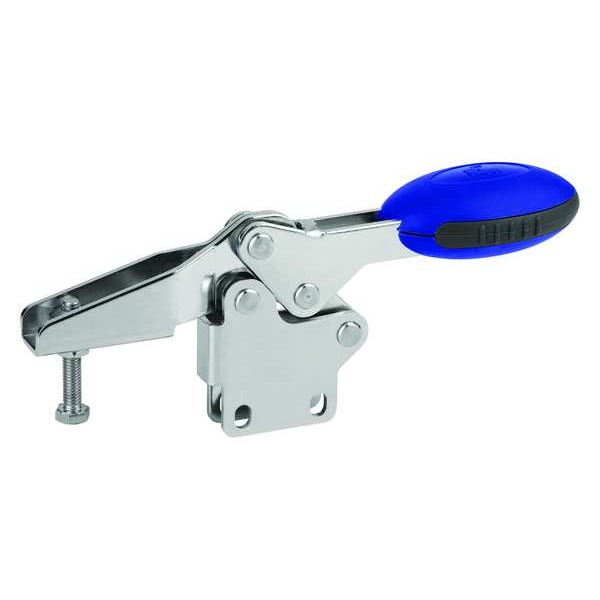

Toggle Clamp Horizontal, Foot Vert. F1=1350, Clamping Spindle M06X35, Stainless Steel, Blue
| Item | Toggle Clamp |
|---|---|
| Holding Capacity (Lb.) | 161 |
| Overall Height (In.) | 2.95 |
| Body Material | Stainless Steel |
| Overall Length (In.) | 7.35 |
| Spindle Material | Stainless Steel |
| Height Under Arm (In.) | 1.45 |
| Thread Size | M6 |
| Includes | Adjustable Clamping Spindle, Straight Foot |
| Application | Clamping |
| Dia. (In.) | 0.22 |
| Base Mounting Centers (In.) | 1.02 |
| Arm | Horizontal Closing |
| Construction | Stainless Steel |
| Spindle | Threaded Stainless Steel |
| Handle | 180 deg |
| Overall Length | 186.6 mm |
| Handle Orientation | Horizontal |
| Spindle Thread Size | M6 x 35 |
| Mounting Holes Center to Center - Short Side | 14.1 mm |
| Handle Material | Polyamide |
| Holding Capacity - Maximum | 161 lbf |
| Overall Depth | 75.2 mm |
| Mounting Holes Center to Center - Long Side | 26 mm |
| Height Under Arm | 36.9 mm |
| Package Quantity | 1 |
