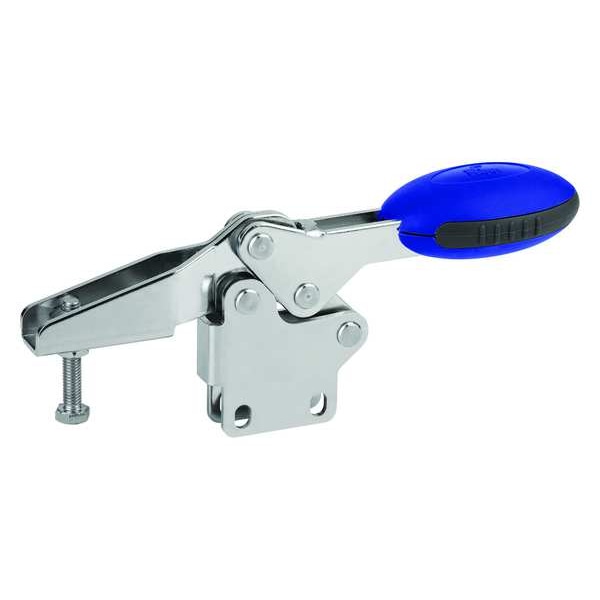

Toggle Clamp Horizontal, Foot Vert. F1=650, Clamping Spindle M05X25, Stainless Steel, Blue
| Item | Toggle Clamp |
|---|---|
| Holding Capacity (Lb.) | 123 |
| Overall Height (In.) | 2.06 |
| Body Material | Stainless Steel |
| Overall Length (In.) | 4.95 |
| Spindle Material | Stainless Steel |
| Height Under Arm (In.) | 1.03 |
| Dia. (In.) | 0.22 |
| Construction | Stainless Steel |
| Spindle | Threaded Stainless Steel |
| Includes | Adjustable Clamping Spindle, Straight Foot |
| Application | Clamping |
| Base Mounting Centers (In.) | 1.73 |
| Thread Size | M5 |
| Handle | 180 deg |
| Arm | Horizontal Closing |
| Overall Length | 125.7 mm |
| Handle Orientation | Horizontal |
| Spindle Thread Size | M5 x 25 |
| Handle Material | Polyamide |
| Mounting Holes Center to Center - Short Side | 18 mm |
| Height Under Arm | 26.2 mm |
| Holding Capacity - Maximum | 123 lbf |
| Mounting Holes Center to Center - Long Side | 8.1 mm |
| Overall Depth | 52.2 mm |
| Package Quantity | 1 |
