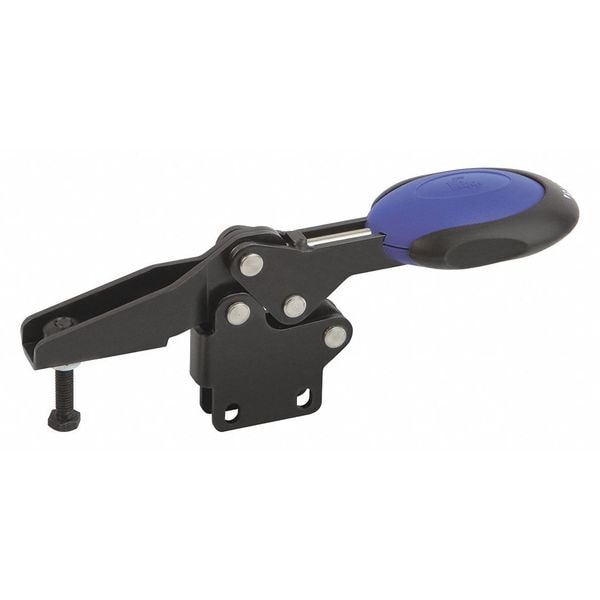

Toggle Clamp Horizontal With Safety Lock, Foot Vert. F1=2200, Clamping Spindle M10X55, Steel, Blue
| Item | Toggle Clamp |
|---|---|
| Holding Capacity (Lb.) | 269 |
| Overall Height (In.) | 4-1/2 |
| Body Material | Steel |
| Overall Length (In.) | 11.26 |
| Spindle Material | Steel |
| Height Under Arm (In.) | 2.35 |
| Thread Size | M10 |
| Base Mounting Centers (In.) | 1.63 |
| Construction | Steel |
| Arm | Horizontal Closing |
| Application | Clamping |
| Includes | Adjustable Clamping Spindle, Safety Interlock, Straight Foot |
| Spindle | Steel |
| Handle | 180 deg |
| Dia. (In.) | 0.35 |
| Overall Length | 286 mm |
| Mounting Holes Center to Center - Short Side | 16.2 mm |
| Handle Orientation | Horizontal |
| Spindle Thread Size | M10 x 55 |
| Mounting Holes Center to Center - Long Side | 41.5 mm |
| Height Under Arm | 59.6 mm |
| Handle Material | Polyamide |
| Holding Capacity - Maximum | 269 lbf |
| Overall Depth | 114.3 mm |
| Package Quantity | 1 |
