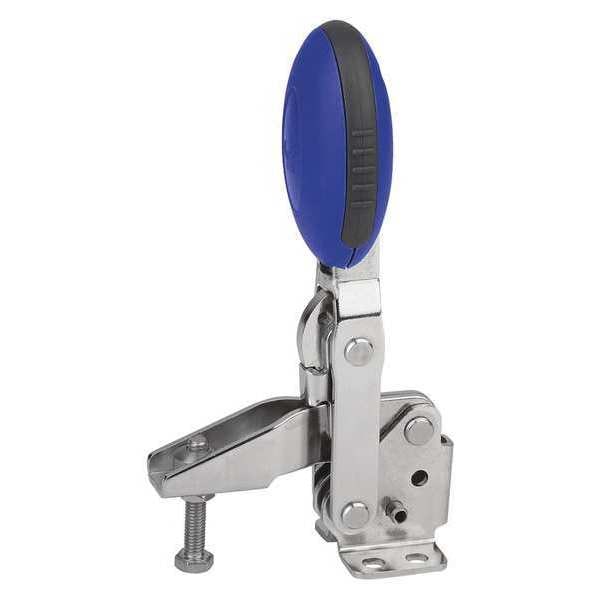

Toggle Clamp Vertical, Foot Horiz., Stainless Steel Bright, Blue
| Item | Toggle Clamp |
|---|---|
| Type | Flat Foot, Stainless Steel Body, Vertical Handle |
| Holding Capacity (Lb.) | 211 |
| Overall Height (In.) | 7-1/4 |
| Body Material | Stainless Steel |
| Latch | Not Included |
| Overall Length (In.) | 4.23 |
| Spindle Material | Stainless Steel |
| Height Under Arm (In.) | 1.29 |
| Dia. (In.) | 0.26 |
| Spindle | Threaded Stainless Steel |
| Thread Size | M8 |
| Arm | U-Shaped |
| Handle | 90 deg |
| Base Mounting Centers (In.) | 0.83 x 1.26 |
| Application | Clamping |
| Includes | Adjustable Clamping Spindle, Flat Foot |
| Overall Length | 107 mm |
| Handle Material | Polyamide |
| Handle Orientation | Vertical |
| Height Under Arm | 32.7 mm |
| Spindle Thread Size | M8 x 45 |
| Holding Capacity - Maximum | 211 lbf |
| Overall Depth | 184.2 mm |
| Mounting Holes Center to Center - Long Side | 32 mm |
| Mounting Holes Center to Center - Short Side | 21 mm |
| Package Quantity | 1 |
