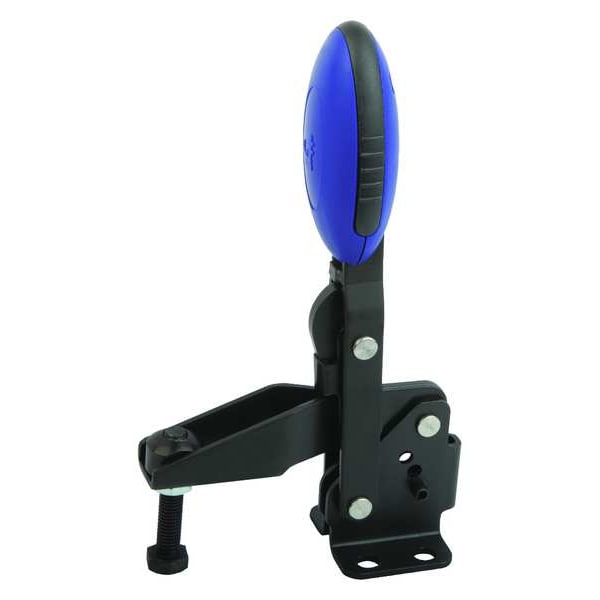

Toggle Clamp Vertical, Foot Horiz., Steel Nitrocarb and Oxidized, Blue
| Item | Toggle Clamp |
|---|---|
| Type | Flat Foot, Steel Body, Vertical Handle |
| Holding Capacity (Lb.) | 139 |
| Overall Height (In.) | 4.27 |
| Body Material | Steel |
| Latch | Not Included |
| Overall Length (In.) | 2.62 |
| Spindle Material | Steel |
| Height Under Arm (In.) | 3/4 |
| Arm | U-Shaped |
| Base Mounting Centers (In.) | 0.63 x 0.94 |
| Spindle | Steel |
| Handle | 90 deg |
| Thread Size | M5 |
| Dia. (In.) | 0.17 |
| Includes | Adjustable Clamping Spindle, Flat Foot |
| Application | Clamping |
| Overall Length | 65.6 mm |
| Height Under Arm | 3/4 in |
| Holding Capacity - Maximum | 139 lbf |
| Handle Material | Polyamide |
| Spindle Thread Size | M5 x 25 |
| Handle Orientation | Vertical |
| Mounting Holes Center to Center - Long Side | 24 mm |
| Mounting Holes Center to Center - Short Side | 14 mm |
| Overall Depth | 107.4 mm |
| Package Quantity | 1 |
