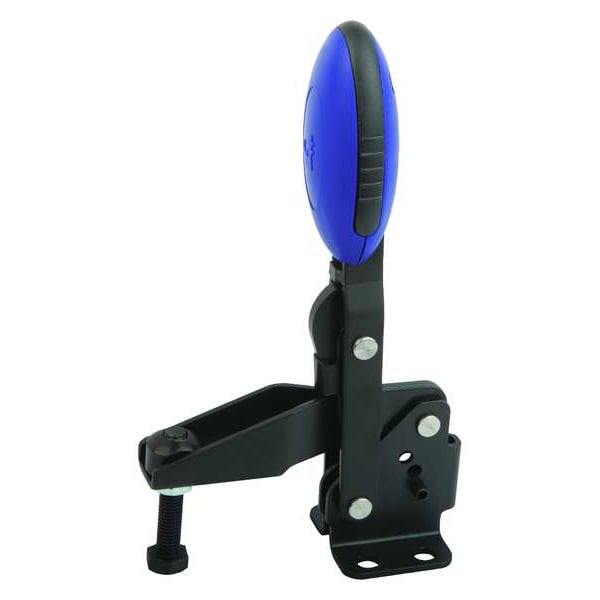

Toggle Clamp Vertical, Foot Horiz., Steel Nitrocarb and Oxidized, Blue
| Item | Toggle Clamp |
|---|---|
| Type | Flat Foot, Steel Body, Vertical Handle |
| Holding Capacity (Lb.) | 337 |
| Overall Height (In.) | 8.81 |
| Body Material | Steel |
| Overall Length (In.) | 6.02 |
| Latch | Not Included |
| Spindle Material | Steel |
| Height Under Arm (In.) | 1.52 |
| Arm | U-Shaped |
| Dia. (In.) | 0.35 |
| Base Mounting Centers (In.) | 1.26 x 1.77 |
| Thread Size | M10 |
| Spindle | Steel |
| Handle | 90 deg |
| Application | Clamping |
| Includes | Adjustable Clamping Spindle, Flat Foot |
| Overall Length | 153 mm |
| Overall Depth | 223.9 mm |
| Mounting Holes Center to Center - Long Side | 45 mm |
| Holding Capacity - Maximum | 337 lbf |
| Mounting Holes Center to Center - Short Side | 27 mm |
| Spindle Thread Size | M10 x 55 |
| Height Under Arm | 1.52 in |
| Handle Orientation | Vertical |
| Handle Material | Polyamide |
| Package Quantity | 1 |
