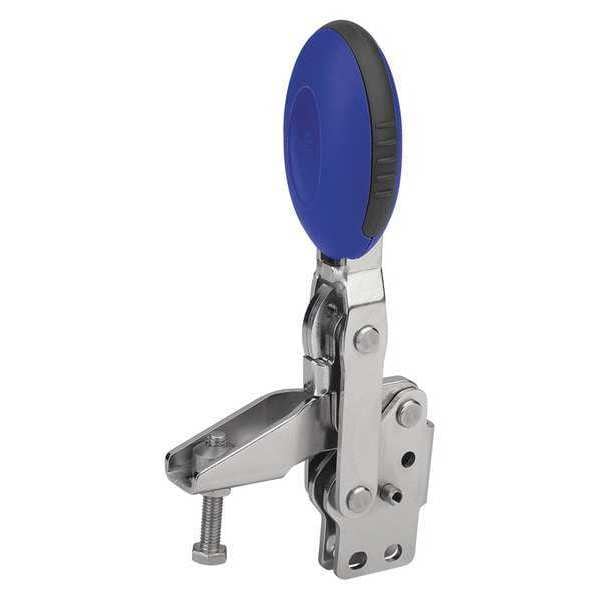

Toggle Clamp Vertical, Foot Vert. F1=2000, Clamping Spindle M08X45, Stainless Steel, Blue
| Item | Toggle Clamp |
|---|---|
| Type | Straight Foot, Stainless Steel Body, Vertical Handle |
| Holding Capacity (Lb.) | 211 |
| Overall Height (In.) | 7.89 |
| Body Material | Stainless Steel |
| Latch | Not Included |
| Overall Length (In.) | 4.21 |
| Spindle Material | Stainless Steel |
| Height Under Arm (In.) | 1.93 |
| Arm | U-Shaped |
| Dia. (In.) | 0.26 |
| Handle | 90 deg |
| Thread Size | M8 |
| Base Mounting Centers (In.) | 0.83 |
| Spindle | Threaded Stainless Steel |
| Includes | Adjustable Clamping Spindle, Straight Foot |
| Application | Clamping |
| Overall Length | 107 mm |
| Handle Orientation | Vertical |
| Overall Depth | 200.4 mm |
| Mounting Holes Center to Center - Short Side | 10.2 mm |
| Mounting Holes Center to Center - Long Side | 21 mm |
| Height Under Arm | 49 mm |
| Holding Capacity - Maximum | 211 lbf |
| Spindle Thread Size | M8 x 45 |
| Handle Material | Polyamide |
| Package Quantity | 1 |
