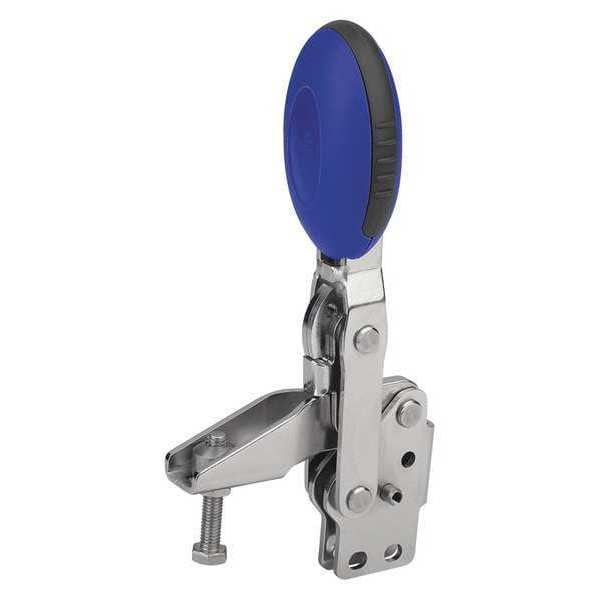

Toggle Clamp Vertical, Foot Vert. F1=750, Clamping Spindle M05X25, Stainless Steel, Blue
| Item | Toggle Clamp |
|---|---|
| Type | Straight Foot, Stainless Steel Body, Vertical Handle |
| Holding Capacity (Lb.) | 139 |
| Overall Height (In.) | 4-3/4 |
| Body Material | Stainless Steel |
| Latch | Not Included |
| Overall Length (In.) | 2-1/2 |
| Spindle Material | Stainless Steel |
| Height Under Arm (In.) | 1.22 |
| Base Mounting Centers (In.) | 0.06 |
| Thread Size | M5 |
| Dia. (In.) | 0.17 |
| Spindle | Threaded Stainless Steel |
| Arm | U-Shaped |
| Handle | 90 deg |
| Application | Clamping |
| Includes | Adjustable Clamping Spindle, Straight Foot |
| Overall Length | 65.6 mm |
| Spindle Thread Size | M5 x 25 |
| Mounting Holes Center to Center - Long Side | 16 mm |
| Handle Material | Polyamide |
| Overall Depth | 119.2 mm |
| Mounting Holes Center to Center - Short Side | 8.1 mm |
| Holding Capacity - Maximum | 139 lbf |
| Height Under Arm | 29.8 mm |
| Handle Orientation | Vertical |
| Package Quantity | 1 |
