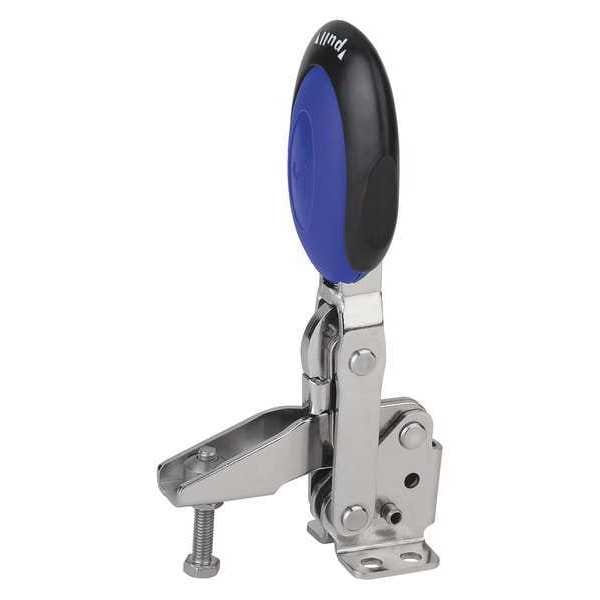

Toggle Clamp Vertical With Safety Lock, Foot Horiz., Stainless Steel Bright, Blue
| Item | Toggle Clamp |
|---|---|
| Type | Flat Foot, Stainless Steel Body, Vertical Handle |
| Holding Capacity (Lb.) | 207 |
| Overall Height (In.) | 6.41 |
| Body Material | Stainless Steel |
| Latch | Not Included |
| Overall Length (In.) | 3.44 |
| Spindle Material | Stainless Steel |
| Height Under Arm (In.) | 0.97 |
| Dia. (In.) | 0.21 |
| Arm | U-Shaped |
| Handle | 90 deg |
| Spindle | Threaded Stainless Steel |
| Includes | Adjustable Clamping Spindle, Flat Foot, Safety Interlock |
| Base Mounting Centers (In.) | 0.55 x 1.06 |
| Thread Size | M6 |
| Application | Clamping |
| Overall Length | 86.5 mm |
| Mounting Holes Center to Center - Short Side | 14 mm |
| Mounting Holes Center to Center - Long Side | 27 mm |
| Handle Orientation | Vertical |
| Handle Material | Polyamide |
| Spindle Thread Size | M6 x 35 |
| Height Under Arm | 24.9 mm |
| Overall Depth | 163 mm |
| Holding Capacity - Maximum | 207 lbf |
| Package Quantity | 1 |
