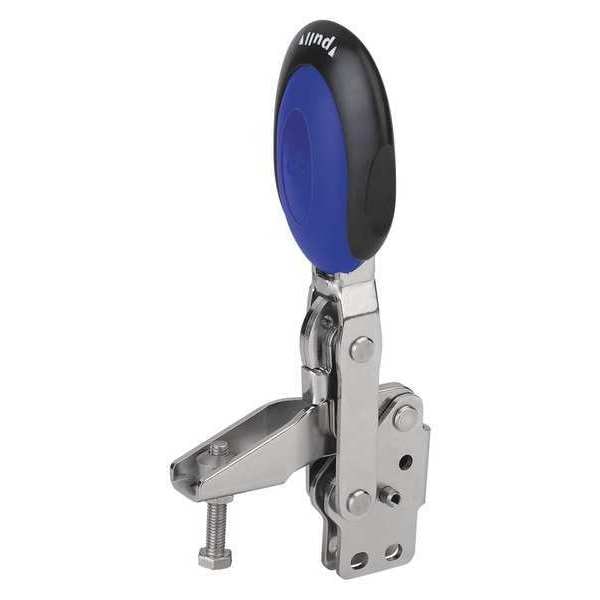

Toggle Clamp Vertical With Safety Lock, Foot Vert. F1=1350, Spindle M06X35, Stainless Steel, Blue
| Item | Toggle Clamp |
|---|---|
| Type | Straight Foot, Stainless Steel Body, Vertical Handle |
| Holding Capacity (Lb.) | 207 |
| Overall Height (In.) | 6.92 |
| Body Material | Stainless Steel |
| Overall Length (In.) | 3.41 |
| Latch | Not Included |
| Spindle Material | Stainless Steel |
| Height Under Arm (In.) | 1.48 |
| Handle | 90 deg |
| Arm | U-Shaped |
| Thread Size | M6 |
| Base Mounting Centers (In.) | 0.55 |
| Spindle | Threaded Stainless Steel |
| Includes | Adjustable Clamping Spindle, Safety Interlock, Straight Foot |
| Dia. (In.) | 0.21 |
| Application | Clamping |
| Overall Length | 86.5 mm |
| Handle Orientation | Vertical |
| Mounting Holes Center to Center - Short Side | 14 mm |
| Spindle Thread Size | M6 x 35 |
| Mounting Holes Center to Center - Long Side | 10.2 mm |
| Height Under Arm | 37.6 mm |
| Holding Capacity - Maximum | 207 lbf |
| Handle Material | Polyamide |
| Overall Depth | 175.7 mm |
| Package Quantity | 1 |
