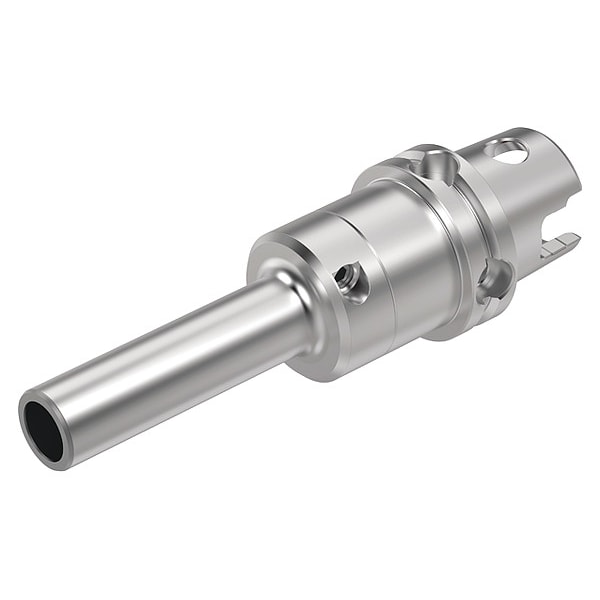

Hydraulic Chuck, 25.50mm, KM63TS
| Series | KMS |
|---|---|
| Bore Dia. | 63 mm |
| Taper | KM63TS |
| Item | Hydraulic Chuck |
| Nose Dia. | 25.5 mm |
| ANSI Number | KM63TSHCSL18170M |
| Hole Dia. | 63 mm |
| Shank Type - Machining | Taper |
| Taper Size | KM63TS |
| Balanced to RPM | 15,000 |
| Shank Dia. | 18 mm |
| Overall Length | 209.95 mm |
| Coolant Fed | Coolant Through |
| Tool Depth | 95 mm |
| Projection | 170 mm |
| Package Quantity | 1 |
