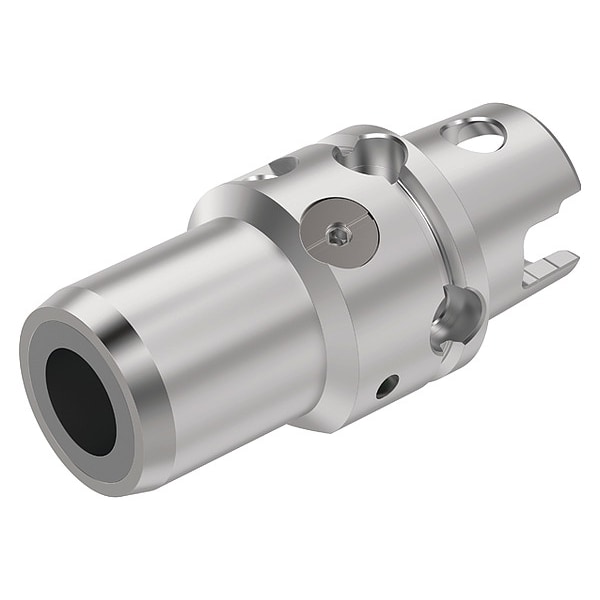

Hydraulic Chuck, 25.67mm, KM63TS
| Series | KMS |
|---|---|
| Bore Dia. | 63 mm |
| Item | Hydraulic Chuck |
| Taper | KM63TS |
| ANSI Number | KM63TSHC06070M |
| Nose Dia. | 25.67 mm |
| Standards | ISO 26622 |
| Taper Size | KM63TS |
| Tool Depth | 33 mm |
| Shank Type - Machining | Taper |
| Shank Dia. | 6 mm |
| Balanced to RPM | 15,000 |
| Projection | 70 mm |
| Overall Length | 109.95 mm |
| Coolant Fed | Coolant Through |
| Hole Dia. | 63 mm |
| Package Quantity | 1 |
